CARLO-GAVAZZI

    DPC01DM69

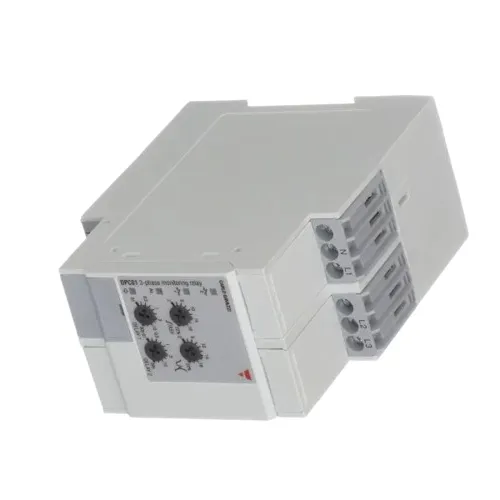

    True RMS 3-Phase voltage monitoring relay with wide voltages and frequency ranges, adjustable voltage levels, output and status LED indication


    $0.00
    1
    DPC01DM69
    CARLO-GAVAZZI
    Brand New
    12 Months
    Out Of Stock

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    • Watching over 3-phase mains with 3 or 4 wires (3P+N).
    • Detection of phase loss, tolerance, asymmetry, and the right phase order.
    • Overvoltage, undevoltage, asymmetry, and tolerance setpoints are changeable on the front dial.
    • Time delay.
    • Two outputs for changeover relays.
    • A wide variety of frequencies and voltages. working with voltages between 50 and 400 Hz between 100 and 690 VAC.
    • Voltage levels, asymmetry, tolerance, and time delay are all adjustable. to enable a suitable reaction to genuine alarm circumstances.
    • LED status and output indicator. for speedy problem-solving.
    • A pair of mounting options. Available for installation on the DIN-rail (DPC01) and plug-in (PPC01).
    • Programmable power-on delay to avoid start-up annoyance tripping.
    • Exceptional harmonic immunity. for settings with a lot of noise.
