CARLO-GAVAZZI

    In Stock (12 Available)

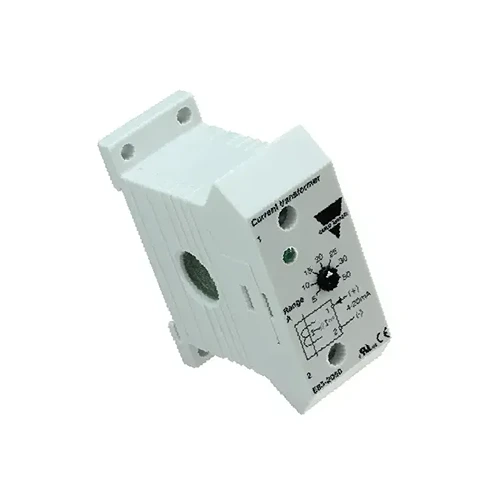

    E83-2050

    AC Current transducer with 7 selectable input ranges, LED indication for power supply and analogue output for easy interface to PLC


    / each
    1
    E83-2050
    CARLO-GAVAZZI
    FACTORY SEALED
    E832050eng.pdf
    Get A Quote

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    Part NumberE83-2050
    VoltageAC
    Type of monitoringCurrent
    PhaseSingle Phase
    PolesSPDT
    Input range50 A
    Output4-20 mADC
    Dimension (W x H x D) 22.5mm x 55.4mm x 47.4mm
    ColourRAL7035 (light grey)
    Protection degreeIP20
    Rating of AmpSee Spec
    BrandCarlo Gavazzi
    AvailabilityPlease Contact Us: sales@qfautomation.com
    Weight - lbs.70 g
    Base Unit of MeasureEach

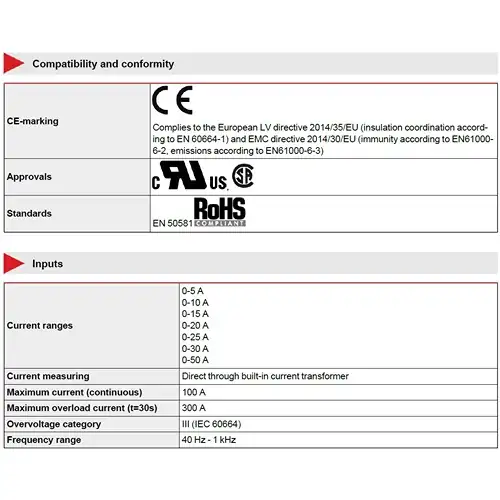

    • Input ranges with 7 selectable.
    • Power supply with LED indication.
    • Output is analogue type. For easy interface to PLC.
    • Small size. To fit panels without having to redesign them.
    • A small size AC current transducer with an analogue output of 4-20 mADC and an integrated current transformer is the E83-2050.
    • To install the metered cable simply, there is a 12 mm hole for the insulated current wire (multiple times if needed), for attachment on a back panel or DIN-rail.
