CARLO-GAVAZZI

    Out Of Stock

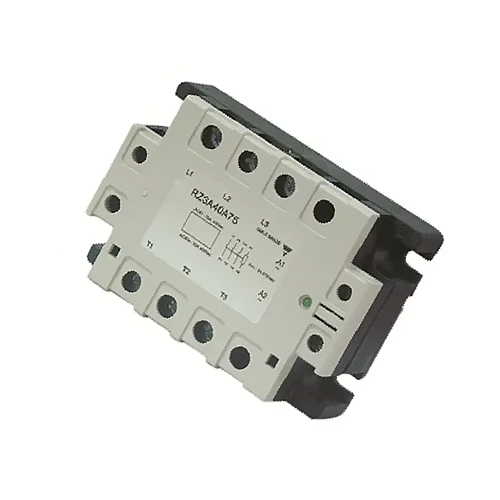

    RZ3A60A75P

    3-phase solid state relay, zero switching with operation current (rated): 3 x 25, 55 or 75A, built-in varistor with integral snubber network


    / each
    1
    RZ3A60A75P
    CARLO-GAVAZZI
    FACTORY SEALED
    RZ3A.pdf

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    • A series of solid-state relays are made to switch different loads, including transformers, motors, and heating elements.
    • Up to 600 VACrms of high voltage can be switched using the relay.
    • For demanding industrial applications, the built-in varistor ensures transient protection.
    • Three semiconductor power units are directly soldered to the direct copper bonded (DCB) substrate for increased reliability and load cycle capabilities.
    • Versions that are controlled by AC or DC are offered.
    • Over temperature warning and a built-in LED status display for applied control voltage (optional).
    • Up to 75 AACrms in load current are covered by the series.
    • Solid State Relay with 3-phase
    • Zero switching
    • Operational current (rated): 55 or 75 A, 3 x 25
    • Operational voltage (rated): Up to VAC 690
    • Voltage of control,  24-275 VAC or 4-32 VDC
    • Network of integral network
    • Built-in varistor
    • Option for over-temperature protection with the emission of an alert
    • Back-of-hand protection IP 10
    • Control input and over-temperature alert status are indicated by LEDs.
