CARLO-GAVAZZI

    In Stock (2 Available)

    UA30CAD35NKTI

    Ultrasonic Diffuse, Analogue and Digital Output Types , Cylindrical M30 PBT housing, Sensing distance: 250-3500 mm


    / each
    1
    UA30CAD35NKTI
    CARLO-GAVAZZI
    FACTORY SEALED
    Get A Quote

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    • A group of diffuse ultrasonic sensors that have a detecting range of 250-3500 mm and a resolution of up to 2.0 mm.
    • Both an analogue and a digital output are present on the sensor.

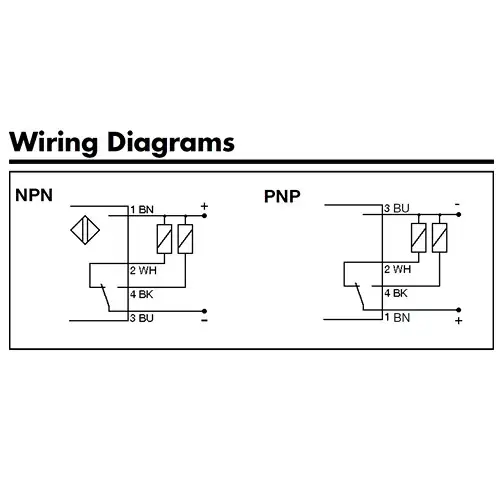

    • The digital output is either NPN or PNP, NO or NC, and the output is either 0-10V or 4-20 mA, which produces a window detection.
    • The sensor is the best option for loop control, level measurement, diameter measurement, and distance measurement.
    • The digital filtering used with microprocessor control renders the sensor resistant to the majority of electromagnetic interference.
    • Cylindrical M30 PBT housing
    • Sensing distance: 250–3500 mm
    • Power supply: 12 (15) to 30 VDC
    • Outputs: 0-10 VDC or 4-20 mA and one switching output (NPN or PNP).
    • Linearity error of 0.5%
    • Repeatability 0.2%
    • Beam angle. ±6°
    • Protection of Short-circuit, polarity is reverse type, and overvoltage protection
    • Protection degree IP 67, Nema 4X
    • 2 m cable or M12 plug
