1SFA896106R7000

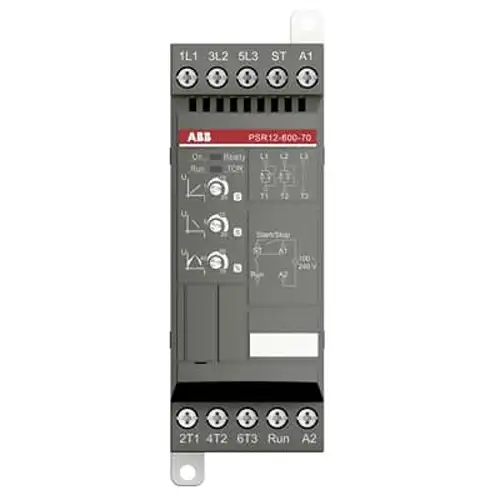

The softstarter PSR12-600-70 has a rated maximum operational current of 12 A with an operating voltage span from 208...600 V AC. The rated control voltage is between 100...240 V AC at 50/60 Hz.

HARDWARE

||

ABB

5.00 10

10 Review(s)
$208.81 $174.01 / each
1
1SFA896106R7000
ABB
FACTORY SEALED
Add To Cart Buy Now

  • Quality Assurance

    OEM Quality Spare Parts.

  • Secure Shopping

    100% Money Back Guarantee.

  • 30-DAY RETURNS

    30 Days After-sales Return.

  • Worldwide Delivery

    Worldwide Fast Shipping.

Dimensions

Product Net Width:
114 mm
Product Net Height:
140 mm
Product Net Depth / Length:
45 mm
Product Net Weight:
0.4 kg

Technical

Rated Operational Voltage:
208 ... 600 V AC
Rated Control Supply Voltage (Us):
100 ... 240 V AC
Rated Control Circuit Voltage (Uc):
24 V DC
Rated Frequency (f):
50/60 Hz
Main Circuit 50 / 60 Hz
Rated Operational Power - In-Line Connection (Pe):
(230 V) 3 kW
(400 V) 5.5 kW
(500 V) 5.5 kW
Rated Operational Current - In-Line Connection (Ie):
12 A
Service Factor Percentage:
100 %
Overload Protection:
Recommended MS132 10.00 ... 16.00
Integrated Electronic Overload:
No
Adjustable Rated Motor Current Ie:
No
Starting Capacity at Maximum Rated Current Ie:
4xIe for 6s
Ramp Time:
0 ... 20 second [unit of time]
1 ... 10 second [unit of time]
Initial Voltage During Start:
40 ... 70 %
Step Down Voltage Special Ramp:
100 ... 60 %
Current Limit Function:
No
Switch for Inside Delta Connection:
No
Run Signal Relay:
Yes
By-pass Signal Relay:
No
Fault Signal Relay:
No
Overload Signal Relay:
No
Signal Indication Completed Start Ramp (LED):
Green
Signal Indication Ready to Start/Standby ON (LED):
Green
Signal Indication Running R (LED):
Green
Signal Indication Ramping Up/Down (LED):
Green
Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time:
10
Communication:
FiledBusPlug(Optional)
Degree of Protection:
IP20
Terminal Type:
Screw Terminals
Connecting Capacity Main Circuit:
Rigid 1/2 x 0.75 ... 2.5 mm²
Connecting Capacity Control Circuit:
1 x 0.75 ... 2.5
2 x 0.75 ... 2.5 mm²
Rigid 1/2 x 0.75 ... 2.5 mm²
Connecting Capacity Supply Circuit:
Rigid 1/2 x 0.75 ... 2.5 mm²
Tightening Torque:
Control Circuit 1 N·m
Main Circuit 1 N·m
Supply Circuit 1 N·m
Product Main Type:
PSR12
Function:
Soft start with voltage ramp
Soft stop with voltage ramp

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
Main Circuit 600 V
Tightening Torque UL/CSA:
Control Circuit 8.9 in·lb
Main Circuit 8.9
Supply Circuit 8.9 in·lb

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +70 °C
Degree of Protection:
IP20

Material Compliance

Conflict Minerals Reporting Template (CMRT):
9AKK108467A5658
REACH Declaration:
2CMT2022-006481
RoHS Information:
2CMT2022-006500
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA:
2CMT2023-006524
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

CQC Certificate:
CQC2006010304208085
Declaration of Conformity - CCC:
2020980304001087
Declaration of Conformity - CE:
1SFA1-86

Container Information

Package Level 1 Width:
121 mm
Package Level 1 Depth / Length:
50 mm
Package Level 1 Height:
156 mm
Package Level 1 Gross Weight:
0.5 kg
Package Level 1 EAN:
7320500338247
Package Level 1 Units:
box 1 piece

Classifications

Object Classification Code:
Q
ETIM 7:
EC000640 - Soft starter
ETIM 8:
EC000640 - Soft starter
ETIM 9:
EC000640 - Soft starter
eClass:
V11.0 : 27370907
UNSPSC:
39121521
