266704

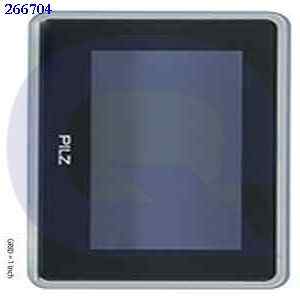

PMIvisu, diagnostic and operating terminal, 4,3", resolution 480 x 272pixel, capacitive touchscreen, TFT, RAM 512 MB, Flash 2 GB, 1 RJ45 port 100 MBit/s, 1 USB host 2.0, capacitor-buffered real-time clock, 24 V DC, 4W, economy version, OS Linux, PASvisu runtime installed and licensed, preinstalled software: Pilz visualisation software.
||
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
General data
| Approval | CE  cULus Listed  EAC (Eurasian)  |
| Operating system | Linux  |
Â
Technical data
Electrical data
| Supply voltage (V) | 24 Â V |
| Type of supply voltage U1 | DC Â |
| Power consumption DC | 2 Â W |
Display
| Display type | TFT Â |
| Display diagonal | 4.3 Â Zoll |
| Display resolution | 480 x 272 Â |
| Display colour depth | 262144 Â |
| Type of touchscreen | capacitive  |
CPU
| Processor clock speed | 800 MHz  |
| RAM | 512 MB Â |
| Real-time clock present | Yes  |
USB interface
| Number of USB host interfaces | 1 Â |
| Type of USB host interface | USB 2.0 Type A Â |
Ethernet interface
| Ethernet transmission rate | 100 MBit/s  |
Environmental data
| Ambient temperature standard | EN 60068-2-14 Â |
| Ambient temperature | 0 - 50  °C |
| Storage temperature standard | EN 60068-2-1/-2 Â |
| Climatic suitability standard | EN 60068-2-78 Â |
| Humidity rating | 90 % r. h. at 40 °C  |
| Condensation permitted? | Not permitted  |
| EMC to standard ... | EN 61000-6-2 Â EN 61000-4-4 Â EN 61000-4-5 Â EN 61000-6-4 Â EN 61000-4-6 Â EN 61000-4-2 Â EN 61000-4-3 Â |
| Vibration to standard ... | EN 60068-2-6 Â |
| Acc. shock to standard1 | 15g  |
| Protection type standard | ENÂ 60529 Â |
| Protection type, housing | Â |
| UL enclosure type | 1,2,5 Â |
Mechanical data
| Height dimension | 95 Â mm |
| Width dimension | 135 Â mm |
| Depth dimension | 36.3 Â mm |
| Net weight | 435 Â g |
| Gross weight | 695 Â g |
Environment
| REACh compliance | contains min. 1 SVHC-substance  |
| WEEE classifikation (08/2018) | 2 device/monitor > 100 cm²  |
Commercial data
| ECLASS version | ECLASS-9.1 Â |
| ECLASS Reference Feature | 27330201 Â |
| ETIM Version | ETIM-7.0 Â |
| ETIM Reference Group | EG000024Â Â |
