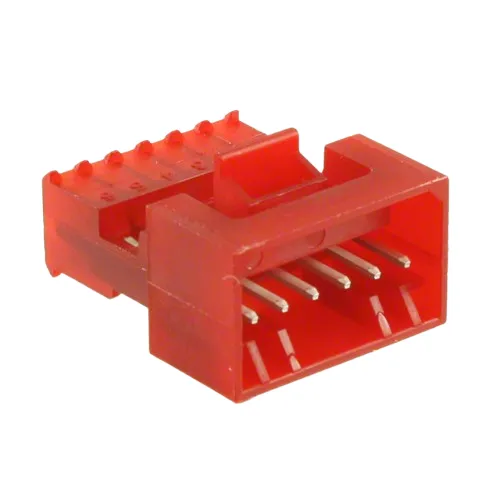

3-647000-6

• Discrete Wire Type- Stranded
• Connector & Housing Type- Plug
• Connector System- Wire-to-Wire
• Number of Cavities- 6
• Number of Positions- 6
• Number of Rows- 1
• Wire Contact Termination & Mating Area Plating Material- Tin (Sn)
• Contact Underplating Material- Nickel
• Contact Current Rating (Max)- 5A
• Connector Mounting Type- Cable Mount (Free-Hanging)
• Connector Length- 17.78 mm (0.7 in)
• Wire Size- 0.3 – 0.4mm²
• Connector Height- 12.54 mm (0 .494 in)
• Connector Width- 21.4 mm (0 .843 in)
• Operating Temp- (-55°C – 105°C)
• Primary Product Color- Red
