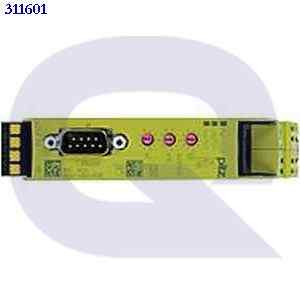

311601
PSSnet, gateway, standard, protocol converter between Modbus/TCP Server and EtherCAT Slave, supports CANopen over EtherCAT, for use with PSS 3000, PSS 4000, PMI, PMCprimo and third-party products,configuration with web server, 1 RJ45 port Modbus/TCP, 2 RJ45 ports EtherCAT, transmission rates 10/100 MBit/s, auto-negotiation, data length 512Byte.
||
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
General data
| Approval | CE  cULus Listed  |
Â
Technical data
Electrical data
| Purpose of U1 | Module supply  |
| Supply voltage (V) | 24 Â V |
| Type of supply voltage U1 | DC Â |
| Power consumption DC | 3 Â W |
Fieldbus interface
| Fieldbus interface | EtherCAT Â |
| Fieldbus device type | Slave  |
| Name of fieldbus protocol | CANopen over EtherCAT Â |
| Selectable transmission rates | 100 MBit/s  |
| Connection fieldbus | RJ45 Â |
| Fieldbus operating modes | Auto-MDIX Â |
| Galv. isolation fieldbus | Yes  |
| Type of galvanic isolation | Functional insulation  |
MODBUS
| Number of MODBUS interfaces | 8 Â |
| Modbus connection | RJ45 Â |
| Modbus device type | Server  |
| Modbus operating modes | Auto-MDIX  Autonegotiation  |
| Modbus selectable trans. rate | 10 MBit/s  100 MBit/s  |
| Galv. isolation from Modbus | Yes  |
Environmental data
| Ambient temperature standard | EN 60068-2-14 Â |
| Ambient temperature | 0 - 60  °C |
| Storage temperature standard | EN 60068-2-1/-2 Â |
| Climatic suitability standard | EN 60068-2-30 Â EN 60068-2-78 Â |
| Humidity rating | 93 % r. h. at 40 °C  |
| Condensation permitted? | Not permitted  |
| Perm. operating height ASL | 2000 m  |
| EMC to standard ... | EN 61131-2 Â |
| Vibration to standard ... | EN 60068-2-6 Â |
| Acc. shock to standard1 | 15g  |
| Clearance & creepage dist. to | EN 61131-2 Â |
| Overvoltage category | II Â |
| Pollution degree clear.&creep. | 2 Â |
| Protection type standard | ENÂ 60529 Â |
| Protection type, mounting | Â |
| Protection type, housing | Â |
| Terminal protection type | Â |
Potential separation
| Potential isolation 1 between | EtherCAT and system voltage  |
| Type of potential isolation 1 | Functional insulation  |
| Potential isolation 2 between | Modbus and system voltage  |
| Type of potential isolation 2 | Functional insulation  |
Mechanical data
| DIN-rail dimensions | 35 x 7.5 EN 50022 Â |
| Housing material lower section | PC Â |
| Housing material front plate | PC Â |
| Connection terminal | Screw terminal plug-in  Spring-loaded terminal, plugin  |
| Flex. cond. c/s AWG info | 24 - 12 AWG Â |
| Height dimension | 96 Â mm |
| Width dimension | 22.5 Â mm |
| Depth dimension | 110.4 Â mm |
| Net weight | 90 Â g |
| Gross weight | 110 Â g |
Environment
| RoHS directive | 2011/65/EU Â 2015/863/EU Â |
| RoHS conformity | yes  |
| RoHS exceptions | yes  |
| RoHS except.s acc. to direct. | 7a  7c I  |
| REACh compliance | contains min. 1 SVHC-substance  |
| REACh included substances | Lead  |
| %-part of the pollutant | > 0,1 Â |
| CAS No. | 7439-92-1 Â |
| WEEE classifikation (08/2018) | 6 small IT-/communic. device  |
Commercial data
| ECLASS version | ECLASS-9.1 Â |
| ECLASS Reference Feature | 27242208 Â |
| ETIM Version | ETIM-7.0 Â |
| ETIM Reference Group | EG000024Â Â |
