PILZ

    312260

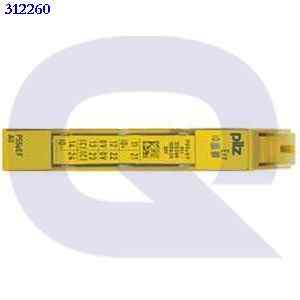

    PSSu, electronic module, failsafe, analogue inputs and outputs, 1 input,0 - 25.59 mA, dual-pole, differential input, resolution 12 Bit.


    $531.75 $443.12
    166203
    312260
    PILZ
    Brand New
    12 Months
    312260.pdf
    11 Available
    Add To Cart Buy Now

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    ApprovalCE
    cULus Listed
    KOSHA
    TÜV
    EAC (Eurasian)
    Application rangeFailsafe

    Technical data
    Number of analogue inputs1
    Type of analogue inputsCurrent
    Signal range analog input0 .. 25.59375 mA
    Type of input filterRC filter
    Resolution of analogue inputs12  Bit
    Conversion method analog i/pSuccessive approximation
    Pot. isolation analog inp./Yes
    Potential isolation inputsyes
    Climatic suitability to ...EN 60068-2-30
    EN 60068-2-2
    EN 60068-2-1
    EN 60068-2-78
    EN 60068-2-14
    Ambient temperature standardEN 60068-2-14
    Ambient temperature0 - 60  °C
    Storage temperature standardEN 60068-2-1/-2
    Climatic suitability standardEN 60068-2-30
    EN 60068-2-78
    Humidity rating93 % r. h. at 40 °C
    Condensation permitted?Not permitted
    Perm. operating height ASL2000 m
    EMC to standard ...EN 61000-6-2
    EN 61000-4-4
    EN 61000-4-5
    EN 61000-6-4
    EN 61000-4-6
    EN 61000-4-2
    EN 61000-4-3
    Vibration to standard ...EN 60068-2-6
    Acc. shock to standard115g
    Clearance & creepage dist. toEN 60664-1
    Overvoltage categoryII
    Pollution degree clear.&creep.2
    Protection type standardEN 60529
    Protection type, mounting
    Protection type, housing
    Terminal protection type
    Housing material lower sectionPC
    Housing material front platePC
    Housing material codePA
    Terminal styleplug-in
    Height dimension76  mm
    Width dimension12.6  mm
    Depth dimension60.2  mm
    Net weight36  g
    Gross weight45  g
    Name of coding elementK
    Colour of coding elementYellow
    RoHS directive2011/65/EU
    2015/863/EU
    RoHS conformityyes
    RoHS exceptionsno
    REACh complianceContains no SVHC substances
    WEEE classifikation (08/2018)5 devices (feed size < 50cm>
    ECLASS versionECLASS-9.1
    ECLASS Reference Feature27242601
    ETIM VersionETIM-7.0
    ETIM Reference GroupEG000024

    The exact weight of the cargo you've scheduled will be measured at the QUANTUM office. We will send you an email with a payment link if the weight difference is larger than the shipment amount. The payment link email will include the new weight and the difference amount that must be paid. If you have any queries concerning this procedure, please contact our customer support team at +1-905-625-3500.
