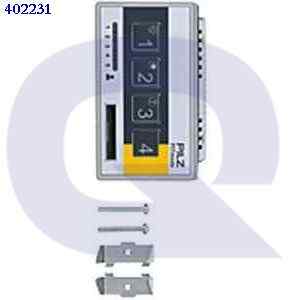

402231
PITmode electronic selector switch for installing the control station and to safe installing of 5 operating modes via a non-contact key and key selection. 4 operating modes OM1 to OM4 and a special mode OM5. Authorization display via LEDs, Key ID interface for transferring the Key ID number of the transponder key. Pushbuttons with digits and pictograms for machine tools.
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
General data
| Approval | CE  cULus Listed  FCC  IC  TÜV  |
| Sensor principle | Transponder  |
| Transponder coding | 0x1111 (PILZ) Â |
Â
Technical data
Electrical data
| Supply voltage (V) | 24 Â V |
| Type of supply voltage U1 | DC Â |
Inputs
| Number of inputs | 3 Â |
| Signal level at input at 0 | -3 - +5 VDC Â |
| DC voltage at input | 24 V DC Â |
| Galv. isolation input | No  |
Semiconductor outputs
| Galv. isolation of S/C outputs | No  |
| S/C output short circuit proof | Yes  |
Environmental data
| Climatic suitability to ... | DIN IEC 60068-2-3 Â |
| Ambient temperature | -20 - 60  °C |
| Climatic suitability standard | EN 60068-2-78 Â |
| Humidity rating | 95 % r. h. at 40 °C  |
| EMC to standard ... | EN 60947-5-1 Â |
| Vibration to standard ... | EN 60068-2-6 Â |
| Clearance & creepage dist. to | EN 60664-1 Â |
| Overvoltage category | II Â |
| Pollution degree clear.&creep. | 2 Â |
| Protection type, mounting | Â |
| Protection type, housing | Â |
| Terminal protection type | Â |
Times
| Time buttons OM1 .. OM4 | 50 ms ... 5 s  |
| Time button OM1 service | 5 s ... 10 s  |
Mechanical data
| Mounting position | any  |
| Max. cable length | 1000 Â m |
| Housing material lower section | ST + 10µ Zn  |
| Housing material front plate | ABS Â |
| Connection terminal | Screw terminal plug-in  Spring-loaded terminal, plugin  |
| Flex. cond. c/s AWG info | 28 - 16 AWG Â |
| Height dimension | 55 Â mm |
| Width dimension | 98 Â mm |
| Depth dimension | 43 Â mm |
| Net weight | 140 Â g |
| Gross weight | 260 Â g |
Transponder
| Transponder energy supply | Passive (battery-free) Â |
| Operating frequency | 125 kHz  |
Environment
| RoHS directive | 2011/65/EU Â 2015/863/EU Â |
| RoHS conformity | yes  |
| RoHS exceptions | yes  |
| RoHS except.s acc. to direct. | 7a  7c I  |
| REACh compliance | contains min. 1 SVHC-substance  |
| REACh included substances | Lead  Lead oxide  |
| %-part of the pollutant | > 0,1% Â |
| CAS No. | 7439-92-1 Â 1317-36-8 Â |
| WEEE classifikation (08/2018) | 5 devices (feed size |
Commercial data
| ECLASS version | ECLASS-9.1 Â |
| ECLASS Reference Feature | 27371243 Â |
| ETIM Version | ETIM-7.0 Â |
| ETIM Reference Group | EG000017Â Â |
