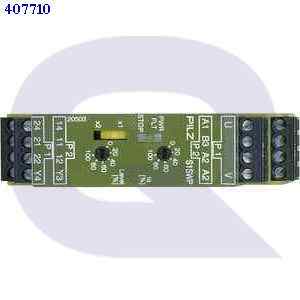

407710
Standstill monitoring relay for monitoring DC and three-phase motors, 2 C/O contacts, plug-in terminals of screw type, width 22.5 mm, UB = 24 - 240 V AC/DC.
||
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
General data
| Approval | CE  CCC  cULus Listed  |
Â
Technical data
Electrical data
| Supply voltage (V) | 24 Â V |
| Type of supply voltage U1 | AC/DC Â |
| Power consumption AC | 5 Â VA |
| Power consumption DC | 2.5 Â W |
| Max. device circuit breaker | Max. conductor cross section  |
Relay outputs
| Utilisation cat. AC/DC1 stand. | EN 60947-4-1 Â |
| Utilisation cat. AC15/DC13sta. | EN 60947-5-1 Â |
| Safety contacts: AC at UL | 240 VAC Res. NO Side Only  |
| Safety contacts: pilot duty | B300, R300 Â |
| Relay contact material | AgCdO Â |
| Addit. contact details relay | + 3.0 µm Au  |
Environmental data
| Climatic suitability to ... | EN 60068-2-78 Â |
| Ambient temperature | -10 - 55  °C |
| Condensation permitted? | Not permitted  |
| Vibration to standard ... | EN 60068-2-6 Â |
| Clearance & creepage dist. to | EN 60947-1 Â |
| Protection type, mounting | Â |
| Protection type, housing | Â |
| Terminal protection type | Â |
Mechanical data
| Mounting position | any  |
| Housing material lower section | PPO UL 94 V0 Â |
| Housing material front plate | ABS UL 94 V0 Â |
| Housing material upper part | PPO UL 94 V0 Â |
| Connection terminal | Screw terminal  |
| Flex. cond. c/s AWG info | 24 - 10 AWG Â |
| Height dimension | 94 Â mm |
| Width dimension | 22.5 Â mm |
| Depth dimension | 121 Â mm |
| Net weight | 145 Â g |
| Gross weight | 155 Â g |
Environment
| REACh compliance | contains min. 1 SVHC-substance  |
| WEEE classifikation (08/2018) | 5 devices (feed size |
Commercial data
| ECLASS version | ECLASS-9.1 Â |
| ECLASS Reference Feature | 27371811 Â |
| ETIM Version | ETIM-7.0 Â |
| ETIM Reference Group | EG000019Â Â |
