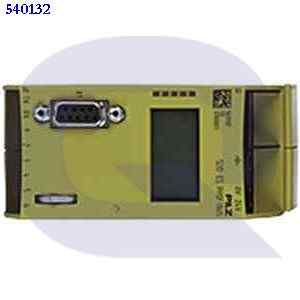

540132
SDD (Safety Device Diagnostics), fieldbus module, standard, Profibus DP,9 DP-V0, 9-pin D-Sub connector, 6 digital inputs/outputs, plug-in connection terminals (not supplied with the unit).
||
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
General data
| Approval | CE  cULus Listed  |
Â
Technical data
Electrical data
| Purpose of U1 | Module supply  |
| Supply voltage (V) | 24 Â V |
| Type of supply voltage U1 | DC Â |
| Power consumption DC | 2 Â W |
Inputs
| Number of digital inputs | 6 Â |
Semiconductor outputs
| Number of semicond. outputs | 6 Â |
| S/C output short circuit proof | Yes  |
Fieldbus interface
| Fieldbus interface | Profibus DP-V0 Â |
| Fieldbus device type | Slave  |
| Name of fieldbus protocol | PROFIBUS Â |
| Perm. fieldbus station address | 1 ... 125d  |
| Selectable transmission rates | 6 MBit/s  500 kBit/s  93.75 kBit/s  12 MBit/s  19.2 kBit/s  1.5 MBit/s  187.5 kBit/s  3 MBit/s  9.6 kBit/s  45.45 kBit/s  |
| Connection fieldbus | 9-pin D-Sub male connector  |
| Galv. isolation fieldbus | Yes  |
Environmental data
| Ambient temperature standard | EN 60068-2-14 Â |
| Ambient temperature | 0 - 55  °C |
| Storage temperature standard | EN 60068-2-1/-2 Â |
| Climatic suitability standard | EN 60068-2-30 Â EN 60068-2-78 Â |
| Humidity rating | 90 % r. h. at 55 °C  |
| Condensation permitted? | Not permitted  |
| Perm. operating height ASL | 2000 m  |
| EMC to standard ... | EN 61000-4-5 Â EN 61000-6-4 Â EN 61000-4-6 Â EN 61000-4-3 Â |
| Vibration to standard ... | EN 60068-2-6 Â |
| Acc. shock to standard1 | 15g  |
| Protection type standard | ENÂ 60529 Â |
| Protection type, mounting | Â |
| Protection type, housing | Â |
| Terminal protection type | Â |
Potential separation
| Potential isolation 1 between | PROFIBUS and system voltage  |
| Type of potential isolation 1 | Functional insulation  |
Mechanical data
| Mounting position | any  |
| DIN-rail dimensions | 35 x 7.5 EN 50022 Â |
| Housing material lower section | PC Â |
| Housing material front plate | PC Â |
| Housing material upper part | PC Â |
| Connection terminal | Screw terminal plug-in  Spring-loaded terminal, plugin  |
| Flex. cond. c/s AWG info | 24 - 12 AWG Â |
| Height dimension | 115 Â mm |
| Width dimension | 45 Â mm |
| Depth dimension | 95 Â mm |
| Net weight | 160 Â g |
| Gross weight | 175 Â g |
Environment
| RoHS directive | 2011/65/EU Â 2015/863/EU Â |
| RoHS conformity | yes  |
| RoHS exceptions | yes  |
| RoHS except.s acc. to direct. | 7a  7c I  |
| REACh compliance | contains min. 1 SVHC-substance  |
| REACh included substances | Lead  |
| %-part of the pollutant | > 0,1 Â |
| CAS No. | 7439-92-1 Â |
| WEEE classifikation (08/2018) | 5 devices (feed size |
Commercial data
| ECLASS version | ECLASS-9.1 Â |
| ECLASS Reference Feature | 27242608 Â |
| ETIM Version | ETIM-7.0 Â |
| ETIM Reference Group | EG000024Â Â |
