PILZ

    Out Of Stock

    570005

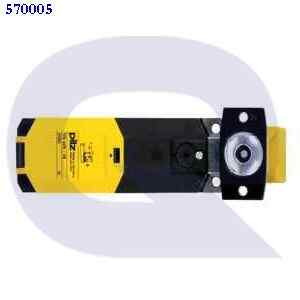

    Safety gate system with guard locking, with radius actuator,interlocking principle magnetic force, contacts 2 n/o, 2 n/c, supply voltage 24 V AC/DC.


    $439.81 $366.51 / each
    110357
    570005
    PILZ
    FACTORY SEALED
    570005.pdf

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    ApprovalCCC
    CE
    BG
    cCSAus
    EAC (Eurasian)
    unit typeUnit

    Technical data
    Supply voltage (V)24  V
    Type of supply voltage U1AC/DC
    Power consumption AC4.4  VA
    Power consumption DC4.4  W
    Utilisation cat. AC/DC1 stand.EN 60947-4-1
    Voltage AC1 safety cont.240  V
    Max. current AC1 safety cont.2.5  A
    Utilisation cat. AC15/DC13sta.EN 60947-5-1
    Voltage AC15 safety cont.230  V
    Max. current AC15 safety cont.2.5  A
    Ambient temperature-25 - 70  °C
    Protection type, housing
    Holding force1500  N
    Connection terminalSpring-loaded terminal
    Terminal stylefixed
    Height dimension184  mm
    Width dimension42.5  mm
    Depth dimension51  mm
    Net weight341  g
    Gross weight524  g
    RoHS directive2011/65/EU
    2015/863/EU
    RoHS conformityyes
    RoHS exceptionsno
    REACh compliancecontains min. 1 SVHC-substance
    REACh included substancesPhenol
    %-part of the pollutant> 0,1
    CAS No.84852-15-3
    WEEE classifikation (08/2018)5 devices (feed size < 50cm>
    ECLASS versionECLASS-9.1
    ECLASS Reference Feature27272603
    ETIM VersionETIM-7.0
    ETIM Reference GroupEG000026
