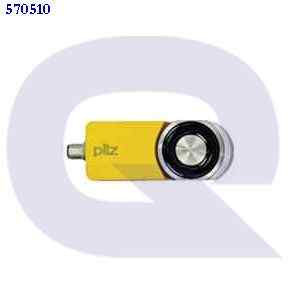

570510
Magnetic safety gate system for applications up to SIL3/PL e/Cat4. Magnetic holding force 500N (process protection). Coding: coded, 8-pin M12 connector, 4 LEDs, IP67, package contents = 1 sensor without actuator
||
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
General data
| Approval | CE  cULus Listed  FCC  IC  EAC (Eurasian)  TÜV  |
| Sensor principle | Transponder  |
| Coding level to ISO 14119 | Low  |
| Classification to EN 60947-5-3 | PDDB Â |
| Transponder coding | coded  |
| Suitable for series connection | yes  |
| unit type | Sensor  |
Â
Technical data
Electrical data
| Supply voltage (V) | 24 Â V |
| Type of supply voltage U1 | DC Â |
| Power consumption DC | 4.8 Â W |
Inputs
| Number of inputs | 3 Â |
| DC voltage at input | 24 V DC Â |
Semiconductor outputs
| Number of OSSD outputs | 2 Â |
| Number of sig. outputs | 1 Â |
| S/C output short circuit proof | Yes  |
| Utilisation cat. to ENÂ 60947-1 | DC-12 Â |
Environmental data
| Ambient temperature standard | EN 60068-2-14 Â |
| Ambient temperature | -25 - 55  °C |
| Storage temperature standard | EN 60068-2-1/-2 Â |
| Climatic suitability standard | EN 60068-2-78 Â |
| Humidity rating | 93 % r. h. at 40 °C  |
| EMC to standard ... | EN 55011: Class A Â EN 60947-5-3 Â ENÂ 62061 Â |
| Vibration to standard ... | EN 60947-5-2 Â |
| Acc. shock to standard1 | 30g  |
| Acc. shock to standard2 | Â |
| Overvoltage category | III Â |
| Pollution degree clear.&creep. | 3 Â |
| Protection type, housing | Â |
Mechanical data
| Holding force magnet on | 500 Â N |
| Max. vertical offset | 5 mm  |
| Max. angular offset | 2.5 deg  |
| Type 1 actuator | PSEN sl-0.5 1.1 Â |
| Type 2 actuator | PSEN sl-0.5fm 1.1 Â |
| Sensor can be flush-mounted | Yes, follow installation guide  |
| Connection type | M12, 8-pin male  |
| Cable lines | LiYY 8 x 0.25 mm2 Â |
| Housing material upper part | PBT Â |
| Material of base plate | Anticorodal, hard anodised  |
| Height dimension | 122 Â mm |
| Width dimension | 45 Â mm |
| Depth dimension | 44 Â mm |
| Net weight | 570 Â g |
| Gross weight | 630 Â g |
Transponder
| Operating frequency | 122 kHz - 128 kHz  |
Environment
| WEEE classifikation (08/2018) | 5 devices (feed size < 50cm> |
Commercial data
| ECLASS version | ECLASS-9.1 Â |
| ECLASS Reference Feature | 27272603 Â |
| ETIM Version | ETIM-7.0 Â |
| ETIM Reference Group | EG000026Â Â |
