In Stock (189 Available)

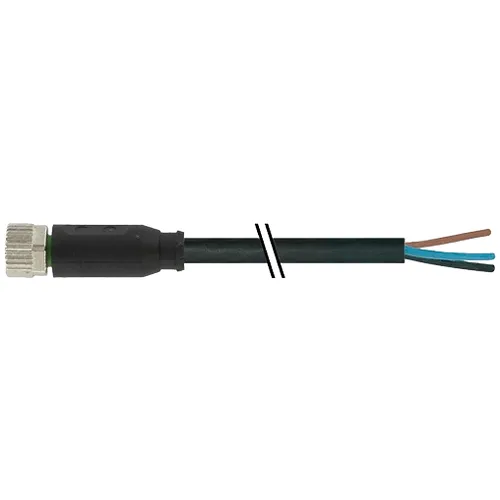

7000-08041-6100500
PVC 3x0.25 bk UL/CSA 5m
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
- 7000-08041-6100500
- Family construction form: M8
- No.of poles: 3
- Coding: A
- Gender: female
- Mounting method: inserted, screwed
- Thread: M8 x 1
- Tightening torque: 0.4 Nm
- Width across flats: SW9
- Cable outlet: straight
- suitable for corrugated tube internal Ø: 6.5 mm
- Material: PUR
- Material contact: Copper alloy
- Coating contact: gold plated
- Family construction form: free cable end
- Stripping length jacket: 20 mm
- Operating voltage AC max: 50 V
- Operating voltage DC max: 60 V
- Current operating per contact max: 4 A
- Pollution Degree: 3
- Rated surge voltage: 1.5 kV
- Material screw connection: Zinc die-casting
- Coating of fitting: nickel plated
- Locking material: Zinc die-casting
- Coating locking: Nickeled
- Material gasket: FKM
- Operating temperature min: -25°C
- Operating temperature max: 85°C
