7000-12341-6540500

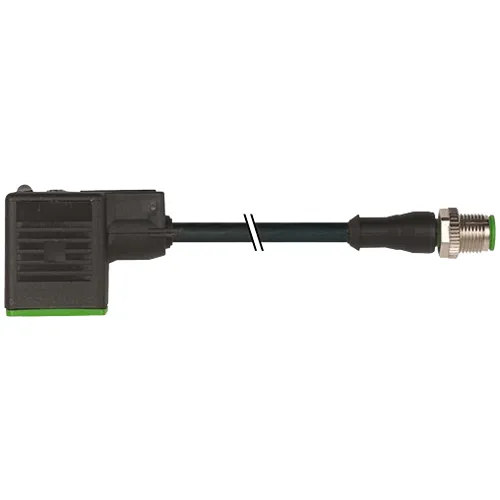

PUR 3x0.34 bk UL/CSA+robot+drag ch. 3m
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
- 7000-12341-6540500
- Weight: 0.13 kg
- Cable length: 3 m
- Tightening torque: 0,4 Nm
- Mounting method: inserted, screwed
- Coating contact: silver-plated
- Family construction form: MSUD
- Thread: M3
- suitable for corrugated tube internal Ø: 6,5 mm
- Material contact: Copper alloy
- Material: PUR
- No.of poles: 4
- Operating voltage AC: 24 V
- Operating voltage AC min: 19,2 V
- Operating voltage AC max: 28,8 V
- Operating voltage DC: 24 V
- Operating voltage DC min: 18 V
- Operating voltage DC max: 30 V
- Cut-off peak voltage max: 55 V
- Current operating per contact max: 4 A
- Current consumption max: 15 mA
- Pollution Degree: 3
- Rated surge voltage: 0,8 kV
- Additional suppressor: Diode, Z-Diode
- Material housing: Plastic
- Color housing: black
- Coating locking: safe-cover
- coated Material: gasket PUR
- Locking material: Zinc die-casting
- Operating temperature min: -25 °C
- Operating temperature max: 85 °C
