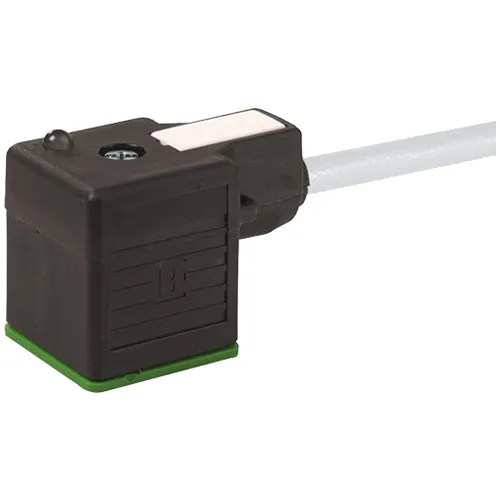

7000-18021-2160300

• Operating voltage AC: 24 V
• Operating voltage AC min: 19,2 V
• Operating voltage AC max: 28,8 V
• Operating voltage DC: 24 V
• Operating voltage DC min: 18 V
• Operating voltage DC max: 30 V
• Cut-off peak voltage max: 55 V
• Current operating per contact max: 4 A
• Current consumption max: 15 mA
• Status indication LED: yellow
• Mounting set: M3
• Pollution Degree: 3
• Rated surge voltage: 0,8 kV
• Color housing: black
• Coating locking: galvanized
• Coating of fitting: galvanized
• Material gasket: PUR
• Locking material: Steel
• Material screw connection: Steel
• Operating temperature min: -25 °C
• Operating temperature max: 85 °C
