Quality Assurance
OEM Quality Spare Parts.
In Stock (20 Available)

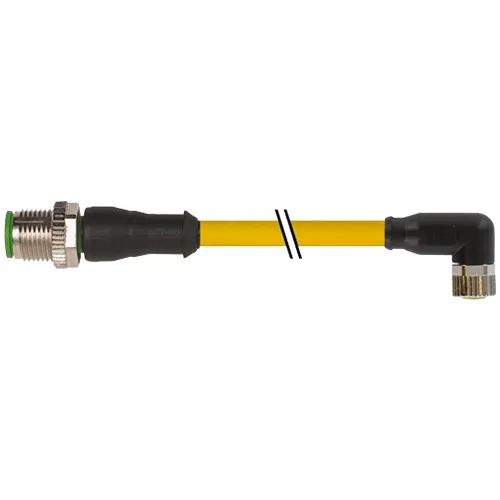

7000-40601-0100120
PVC 3x0.25 ye UL/CSA 1.2m
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
- 7000-40601-0100120
- Weight: 0.047 kg
- Cable length: 1,2 m
- Tightening torque: 0,6 Nm
- Mounting method: inserted, screwed
- Coating contact: gold plated
- Family construction form: M12
- Thread: M12 x 1
- suitable for corrugated tube internal Ø : 10 mm
- Gender: male
- Cable outlet: straight
- Coding: A
- Material contact: Copper alloy
- Material: PUR
- No. of poles: 3
- Width across flats: SW13
- Operating voltage AC max: 50 V
- Operating voltage DC max: 60 V
- Operating voltage AC: 30 V
- Operating voltage DC: 30 V
- Current operating per contact max: 4 A
- Pollution Degree: 3
- Rated surge voltage: 1,5 kV
- Coating housing: Copper alloy
- Coating locking: Nickeled
- Coating of fitting: nickel plated
- Material gasket: FKM
- Locking material: Zinc die-casting
- Material screw connection: Zinc die-casting
- Operating temperature min: -30°C
- Operating temperature max: 85°C
