7000-40881-6360150

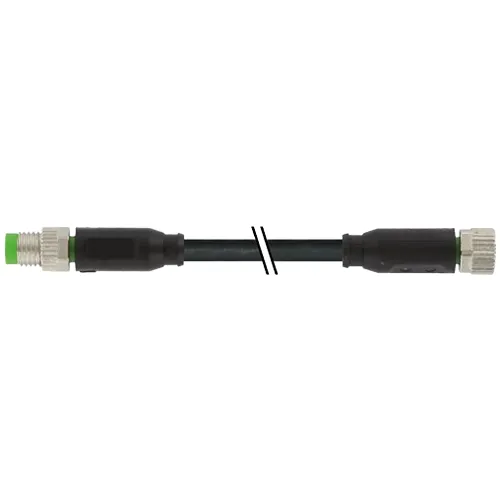

PUR 3x0.75 bk UL/CSA+drag ch. 1.5m
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
- 7000-40881-6360150
- Material short text: MSKL3-A-W636_1.5
- Cable length: 1.5 m
- Family construction form: M12
- No. of poles: 3
- Coding: A
- Mounting method: inserted, screwed
- Thread: M12 x 1
- Tightening torque: 0.6 Nm
- Width across flats: SW13
- suitable for corrugated tube internal Ø: 10 mm
- Material: PUR
- Drop-out delay time max: 20 ms
- Operating voltage AC: 24 V
- Operating voltage AC min: 19.2 V
- Operating voltage AC max: 28.8 V
- Operating voltage DC: 24 V
- Operating voltage DC min: 18 V
- Operating voltage DC max: 30 V
- Current operating per contact max: 4 A
- Cut-off peak voltage max: 55 V
- Current consumption max: 15 mA
- Status indication LED: yellow
- Material housing: Plastic
- Color housing: black
- Locking material: Zinc die-casting
- Coating locking: Nickeled
- Operating temperature min: -25 °C
- Operating temperature max: 85 °C
