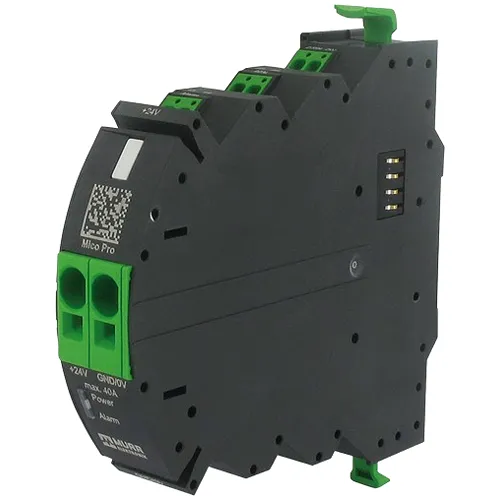

9000-41190-0000000
IN: 24 V DC / 40A, 16mm² / Cover plate included (heavy duty)
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
- 9000-41190-0000000
- Weight: 0.193 kg
- Total current max: 40 A
- Input voltage DC min: 9 V
- Input voltage DC max: 30 V
- Input voltage 1 DC: 12 V
- Input voltage 2 DC: 24 V
- Total current bridge set max: 40 A
- ON input voltage control inputs min: 9 V
- ON input voltage control inputs max: 30 V
- CTRL input voltage control inputs high min. 9 V
- CTRL input voltage control inputs high max: 30 V
- Switching voltage AC max: 30 V
- Switching voltage DC max: 30 V
- AWG number static min: 4 AWG
- number static max: 20 AWG
- number dynamic min: 4 AWG
- number dynamic max: 20
- Height: 130 mm
- Width: 24 mm
- Depth: 114 mm
- Operating temperature min: -25 °C
- Operating temperature max: 55 °C
- Storage temperature min: -40 °C
- Storage temperature max: 80 °C
