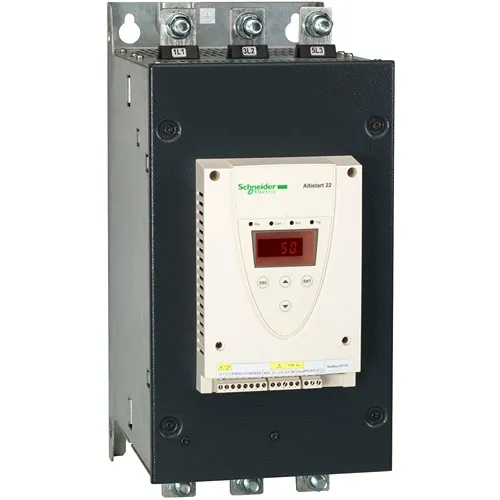

ATS22C21Q
Soft Starter For Asynchronous Motor, Altistart 22, Control 230V, 230 To 440V, 55 To 110Kw
/ each
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Range of product | Altistart 22 |
|---|---|
| product or component type | Soft starter |
| product destination | Asynchronous motors |
| Product specific application | Pumps and fans |
| Component name | ATS22 |
| Network number of phases | 3 phases |
| [Us] rated supply voltage | 230...440 V - 15...10 % |
| Motor power kW | 110 kW 400 V 110 kW 440 V 55 kW 230 V |
| Factory setting current | 195 A |
| Power dissipation in W | 117 W for standard applications |
| Utilisation category | AC-53A |
| Type of start | Start with torque control (current limited to 3.5 In) |
| IcL starter rating | 210 A connection in the motor supply line for standard applications |
| IP degree of protection | IP00 |
| Assembly style | With heat sink |
|---|---|
| Function available | Internal bypass |
| Supply voltage limits | 195…484 V |
| Supply frequency | 50...60 Hz - 10...10 % |
| Network frequency | 45...66 Hz |
| Device connection | To the motor delta terminals In the motor supply line |
| [Uc] control circuit voltage | 230 V - 15...10 % 50/60 Hz |
| Control circuit consumption | 20 W |
| Discrete output number | 2 |
| Discrete output type | Relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O Relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O |
| Minimum switching current | 100 mA 12 V DC relay outputs) |
| Maximum switching current | 5 A 250 V AC resistive 1 relay outputs 5 A 30 V DC resistive 1 relay outputs 2 A 250 V AC inductive 0.4 20 ms relay outputs 2 A 30 V DC inductive 7 ms relay outputs |
| Discrete input number | 3 |
| Discrete input type | LI1, LI2, LI3) logic, 5 mA 4.3 kOhm |
| Discrete input voltage | 24 V |
| Discrete input logic | Positive logic LI1, LI2, LI3 11 V, >= 5 mA |
| Output current | 0.4...1 Icl adjustable |
| PTC probe input | 750 Ohm |
| Communication port protocol | Modbus |
| Connector type | 1 RJ45 |
| Communication data link | Serial |
| Physical interface | RS485 multidrop |
| Transmission rate | 4800, 9600 or 19200 bps |
| Installed device | 31 |
| Protection type | Phase failure line Thermal protection motor Thermal protection starter |
| marking | CE |
| Type of cooling | Forced convection |
| Operating position | Vertical +/- 10 degree |
| Height | 16.73 in (425 mm) |
| Width | 8.11 in (206 mm) |
| Depth | 11.77 in (299 mm) |
| net weight | 72.75 lb(US) (33 kg) |
| Motor power range AC-3 | 55…100 kW 200…240 V 3 phases 110…220 kW 380…440 V 3 phases |
| Motor starter type | Soft starter |
| Electromagnetic compatibility | Conducted and radiated emissions level A IEC 60947-4-2 Damped oscillating waves level 3 IEC 61000-4-12 Electrostatic discharge level 3 IEC 61000-4-2 Immunity to electrical transients level 4 IEC 61000-4-4 Immunity to radiated radio-electrical interference level 3 IEC 61000-4-3 Voltage/current impulse level 3 IEC 61000-4-5 |
|---|---|
| Standards | EN/IEC 60947-4-2 |
| Product certifications | CCC UL GOST CSA C-Tick |
| Vibration resistance | 1 gn 13…200 Hz)EN/IEC 60068-2-6 1.5 mm 2…13 Hz)EN/IEC 60068-2-6 |
| Shock resistance | 15 gn 11 ms EN/IEC 60068-2-27 |
| noise level | 56 dB |
| Pollution degree | Level 2 IEC 60664-1 |
| Relative humidity | 0…95 % without condensation or dripping water EN/IEC 60068-2-3 |
| Ambient air temperature for operation | 14…104 °F (-10…40 °C) without derating) 104…140 °F (40…60 °C) with current derating 2.2 % per °C) |
| ambient air temperature for storage | -13…158 °F (-25…70 °C) |
| Operating altitude | > 1000... |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 18.11 in (46.000 cm) |
| Package 1 Width | 15.75 in (40.000 cm) |
| Package 1 Length | 23.62 in (60.000 cm) |
| Package 1 Weight | 54.01 lb(US) (24.500 kg) |
