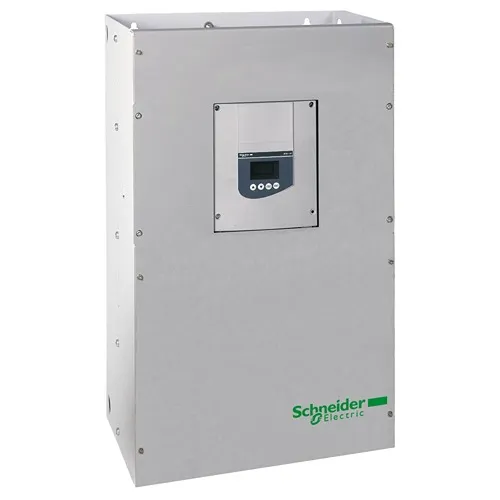

ATS48C66Y
Soft Starter For Asynchronous Motor, Altistart 48, 590A, 208..690V, 160..630Kw
/ each
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Range of product | Altistart 48 |
|---|---|
| product or component type | Soft starter |
| product destination | Asynchronous motors |
| Product specific application | Heavy duty industry and pumps |
| Device short name | ATS48 |
| Utilisation category | AC-53A |
| Ue power supply voltage | 208...690 V - 15...10 % |
| power supply frequency | 50...60 Hz - 5...5 % |
| Motor power kW | 160 kW 230 V for severe applications 315 kW 400 V for severe applications 355 kW 400 V for standard applications 355 kW 440 V for severe applications 400 kW 440 V for standard applications 400 kW 500 V for severe applications 400 kW 525 V for severe applications 560 kW 660 V for severe applications 560 kW 690 V for severe applications 630 kW 660 V for standard applications 630 kW 690 V for standard applications |
| Motor power hp | 200 hp 208 V for standard applications 200 hp 230 V for severe applications 250 hp 230 V for standard applications 400 hp 460 V for severe applications 500 hp 460 V for standard applications 500 hp 575 V for severe applications 600 hp 575 V for standard applications |
| Device connection | In the motor supply line |
|---|---|
| Protection type | Phase failure line Thermal protection motor Thermal protection starter |
| Standards | EN/IEC 60947-4-2 |
| Product certifications | SEPRO DNV CCC NOM 117 CSA UL GOST TCF C-Tick |
| marking | CE |
| Discrete input number | 5 |
| Discrete input type | PTC, 750 Ohm 77 °F (25 °C) Stop, Run, LI3, LI4) logic, |
| Discrete input logic | Positive logic Stop, Run, LI3, LI4 11 V, >= 5 mA |
| Minimum switching current | 10 mA 6 V DC relay outputs |
| Discrete output number | 2 |
| Discrete output type | LO1) logic output 0 V common configurable LO2) logic output 0 V common configurable R1) relay outputs fault relay NO R2) relay outputs end of starting relay NO R3) relay outputs motor powered NO |
| Analogue output type | Current output AO 0-20 mA or 4-20 mA 500 Ohm |
| Communication port protocol | Modbus |
| Connector type | 1 RJ45 |
| Communication data link | Serial |
| Physical interface | RS485 multidrop |
| Transmission rate | 4800, 9600 or 19200 bps |
| Function available | External bypass (optional) |
| Operating position | Vertical +/- 10 degree |
| Height | 26.38 in (670 mm) |
| Width | 15.75 in (400 mm) |
| Depth | 11.81 in (300 mm) |
| net weight | 113.32 lb(US) (51.4 kg) |
| Electromagnetic compatibility | Conducted and radiated emissions level A IEC 60947-4-2 Damped oscillating waves level 3 IEC 61000-4-12 Electrostatic discharge level 3 IEC 61000-4-2 Immunity to electrical transients level 4 IEC 61000-4-4 Immunity to radiated radio-electrical interference level 3 IEC 61000-4-3 Voltage/current impulse level 3 IEC 61000-4-5 |
|---|---|
| Relative humidity | 0…95 % without condensation or dripping water EN/IEC 60068-2-3 |
| Ambient air temperature for operation | 104…140 °F (40…60 °C) with current derating of 2 % per °C) 14…104 °F (-10…40 °C) without derating) |
| ambient air temperature for storage | -13…158 °F (-25…70 °C) |
| Operating altitude | > 1000...2000 m with current derating of 2.2 % per additional 100 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 20.28 in (51.5 cm) |
| Package 1 Width | 23.23 in (59 cm) |
| Package 1 Length | 30.71 in (78 cm) |
| Package 1 Weight | 120.15 lb(US) (54.5 kg) |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 1 |
| Package 2 Height | 29.53 in (75 cm) |
| Package 2 Width | 23.62 in (60 cm) |
| Package 2 Length | 31.50 in (80 cm) |
| Package 2 Weight | 138.89 lb(US) (63 kg) |
