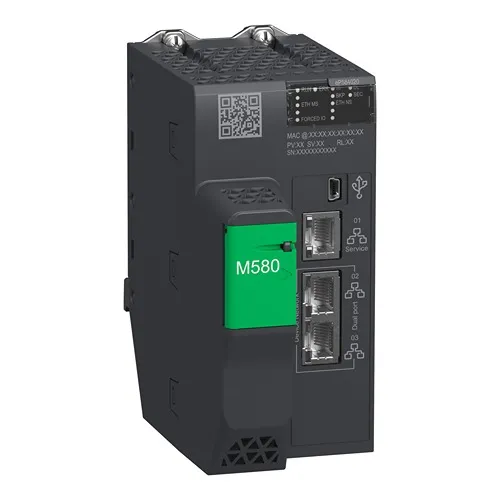

BMEP584020
Standalone Processor, Modicon M580, 16Mb, 125 Ethernet Devices, 8 Local Io Racks Of 4096 Digital, 1024 Analog
/ each
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Range of product | Modicon M580 |
|---|---|
| product or component type | Processor module |
| Number of racks | 8 |
|---|---|
| Local I/O processor capacity (discrete) | 4096 I/O |
| Local I/O processor capacity (analog) | 1024 I/O |
| Number of application specific channel (local rack) | 144 |
| application specific I/O | HART Accurate time stamping SSI encoder Serial link Motion control Counter |
| Checks | Process control |
| Control channels | Programmable loops |
| Integrated connection type | 1 Ethernet TCP/IP service port 2 Ethernet TCP/IP device network USB type mini B |
| Number of distributed equipment | 128 |
| Communication module processor capacity | 8 AS-Interface module 4 Ethernet communication module |
| Communication service | DIO scanner |
| Memory description | Expandable flash, 4 GB data storage Integrated RAM, 10 kB system memory Integrated RAM, 16 MB program Integrated RAM, 2048 kB data |
| Application structure | 1 cyclic/periodic master task 2 auxiliary tasks 1 periodic fast task 128 event tasks |
| Cybersecurity | Achilles certified DoS prevention IPSec SNMP logging Syslog protocol support Transport layer security Audit trail Embedded firewall Firmware signature Password protection Port hardening Secure communiction (HTTPS) Security log |
| Number of instructions per ms | 30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic 40 Kinst/ms 100 % Boolean |
| Current consumption | 295 mA 24 V DC |
| MTBF reliability | 775000 H |
| marking | CE |
| Vibration resistance | 3 gn |
|---|---|
| Shock resistance | 30 gn |
| Ambient air temperature for operation | 32…140 °F (0…60 °C) |
| ambient air temperature for storage | -40…185 °F (-40…85 °C) |
| Operating altitude | 0...2000 m 2000...5000 m with derating factor |
| Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
| Product certifications | CE UL CSA RCM EAC Merchant Navy |
| Standards | IEC 61131-2 IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 EN/IEC 61000-6-5, interface type 1 and type 2 EN/IEC 61850-3, location G |
| Environmental characteristic | Hazardous location class I division 2 |
| Supply | Internal power supply via rack |
| Status LED | 1 LED (green) processor running (RUN) 1 LED (red) processor or system fault (ERR) 1 LED (red) I/O module fault (I/O) 1 LED (green) download in progress (DL) 1 LED (red) memory card or CPU flash fault (BACKUP) 1 LED (green/red) ETH MS (Ethernet port configuration status) 1 LED (green/red) Eth NS (Ethernet network status) |
| net weight | 1.87 lb(US) (0.849 kg) |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.54 in (9.000 cm) |
| Package 1 Width | 7.09 in (18.000 cm) |
| Package 1 Length | 9.84 in (25.000 cm) |
| Package 1 Weight | 30.83 oz (874.000 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 11.81 in (30.000 cm) |
| Package 2 Width | 11.81 in (30.000 cm) |
| Package 2 Length | 15.75 in (40.000 cm) |
| Package 2 Weight | 12.63 lb(US) (5.729 kg) |
