BMEXBP1002H

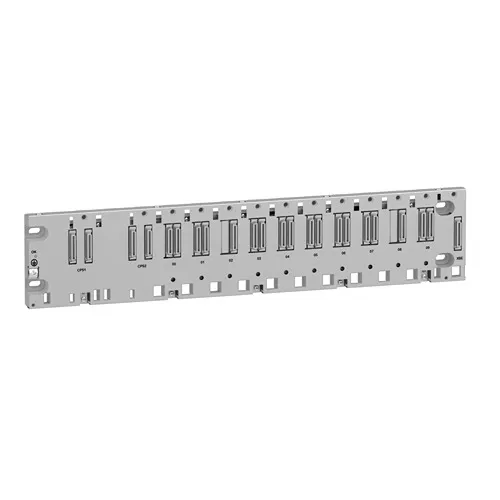

Rack, Modicon X80, 10 Slots, Redundant Ps, Ethernet Backplane, Ruggedized
/ each
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Range of product | Modicon X80 |
|---|---|
| accessory / separate part type | Ruggedized rack |
| Product specific application | For severe environments |
| Number of slots | 8 bus X + Ethernet 2 bus X |
|---|---|
| Product compatibility | Specific application module BMX processor BMXCPS4002 BME processor I/O module |
| Power consumption in W | 251 mW 3.3 V DC 3.9 W 24 V DC |
| Electrical connection | 1 connector (XBE) expansion module |
| Fixing mode | By 4 M6 screws plate By 4 screws 0.17…0.25 in (4.32…6.35 mm) panel |
| Current consumption | 162 mA 24 V DC 76 mA 3.3 V DC |
| MTBF reliability | 1184170 H |
| net weight | 3.02 lb(US) (1.37 kg) |
| IP degree of protection | IP20 |
|---|---|
| Ambient air temperature for operation | -13…158 °F (-25…70 °C) |
| Relative humidity | 5…95 % without condensation |
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility 2014/34/EU - ATEX directive |
| Product certifications | CE UL CSA RCM EAC Merchant Navy ATEX zone 2/22 IECEx zone 2/22 |
| Standards | IEC 61131-2 IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 IEC 61000-6-5, interface type 1 and type 2 IEC 61850-3, location G IEC 60079-0 |
| Environmental characteristic | Gas resistant class Gx ISA S71.04 Gas resistant class 3C4 IEC 60721-3-3 Dust resistant class 3S4 IEC 60721-3-3 Sand resistant class 3S4 IEC 60721-3-3 Salt resistant level 2 IEC 68252 Mold growth resistant class 3B2 IEC 60721-3-3 Fungal spore resistant class 3B2 IEC 60721-3-3 Hazardous location class I division 2 |
| protective treatment | Conformal coating |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.56 in (6.500 cm) |
| Package 1 Width | 5.91 in (15.000 cm) |
| Package 1 Length | 23.03 in (58.500 cm) |
| Package 1 Weight | 3.02 lb(US) (1.369 kg) |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 11.81 in (30.000 cm) |
| Package 2 Width | 15.75 in (40.000 cm) |
| Package 2 Length | 23.62 in (60.000 cm) |
| Package 2 Weight | 25.40 lb(US) (11.520 kg) |
