LENZE

ESV112N04TLC

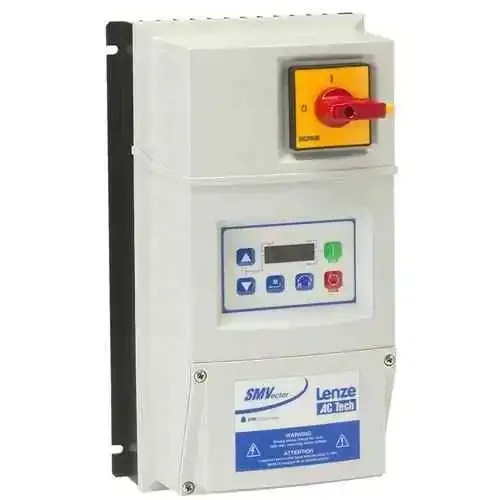

ESV112N04TLC - SMV 1.5 HORSEPOWER WITH INPUT VOLTAGE 400-480V, OUTPUT IS 3 PHASE, HOUSING N4X IND. AND OPTIONS IS ENCLOSED. , LENZE


$920.29 $766.91
165157
ESV112N04TLC
Brochure SMV.pdf
Out Of Stock

  • Quality Assurance

    OEM Quality Spare Parts.

  • Secure Shopping

    100% Money Back Guarantee.

  • 30-DAY RETURNS

    30 Days After-sales Return.

  • Worldwide Delivery

    Worldwidely Fast Shipping.


  • Linear torque dynamic response with two separate acceleration ramps and a deceleration ramp.



  • Ramp-to-Stop with S-Type Auxiliary Fixed Accel Boost Improved Starting 500 Hz Output Frequency (Optional is 1,000 Hz).



  • 4, 6, 8, 10, 12, or 16 kHz. switching frequency.



  • Universal Logic Assertion Negative or Positive Logic Input (Selectable)



  • Braking of DC Injection with Regenerative Braking, which is Optional Over Protection of Temperature



  • A potentiometer with a keypad with 8 preset speeds and Jog Floating Point Controls is included in the speed commands. 0-10 VDC Scalable voltage: 4-20 mA scalable current



  • Process Control: Reverse Acting and Direct PID Modes, Sleep Mode



  • From Low to High DC Voltage Monitoring, V Compensation & Low Line for Bus V Protection



  • Currently being monitored: Overload Protection for Motors Limiting the current Safeguard Protection Against Protection of Phase Loss Against Fault from Ground Short Circuits



  • Protective Fault in Follower Management Select Preset Setpoint or Preset Speed. Start the notification system

Key Benefits

• Rugged environmental capabilities with IP65 integrity

• Flux Vector control ensures accurate motor control.

• Easy-to-use user interface for quick setup

• Structure of parameters for easy navigation

• PID controller onboard with energy-saving "Sleep Mode" feature

• One display shows the status of all user terminals.

• Built-in EMC filter (240 V 1 only, 400 V/480 V 3 optional), (EN 61800-3) first and second environments, C1 and C2.

• IEC 60947-3 mains isolator with lock-off option

I/O Control Features

• Positive or negative logic

• Potentiometer with motor

• 4–20 mA and 0–10 V analog inputs with wire break detection (4–20 mA)

• Relay output status

• Keypad that may be mounted from a distance

Motor Control Features

• Auxiliary stop ramp

• UL-approved thermal overload protection system for motors

• Controller for motor brakes

• Dual rates of acceleration/declaration

• 8-speed settings

• Flying restart

• Braking using DC injection

• S ramps

• Braking with Motor Flux

• Pump rinse/Fan Purge

• 16 Step Sequencer



Product Handbooks

Options Handbooks

Transmission Handbooks

Application Note

Declaration Of Conformity
