LENZE

ESV751N02YXB

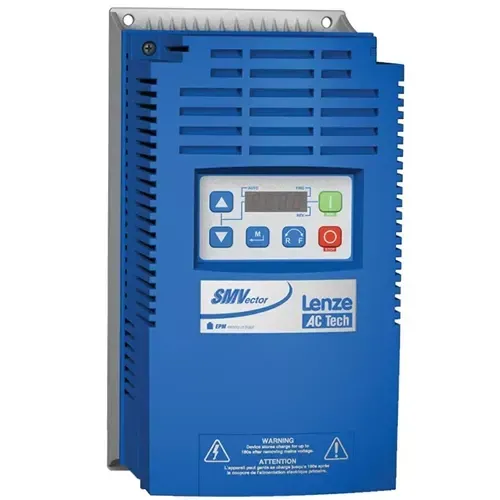

ESV751N02YXB - DRIVE 1 HORSEPOWER WITH INPUT VOLTAGE 200 - 240V NEMA 1, CONVECTIONALLY COOLED AND CURRENT OUTPUT IS 4.2 AMPS, LENZE


$342.30 $285.25
87733
ESV751N02YXB
Brochure SMV.pdf
43 Available
Add To Cart Buy Now

  • Quality Assurance

    OEM Quality Spare Parts.

  • Secure Shopping

    100% Money Back Guarantee.

  • 30-DAY RETURNS

    30 Days After-sales Return.

  • Worldwide Delivery

    Worldwidely Fast Shipping.


  • Linear torque dynamic response with two separate acceleration ramps and a deceleration ramp.



  • Ramp-to-Stop with S-Type Auxiliary Fixed Accel Boost Improved Starting 500 Hz Output Frequency (Optional is 1,000 Hz).



  • 4, 6, 8, 10, 12, or 16 kHz. switching frequency.



  • Universal Logic Assertion Negative or Positive Logic Input (Selectable)



  • Braking of DC Injection with Regenerative Braking, which is Optional Over Protection of Temperature



  • A potentiometer with a keypad with 8 preset speeds and Jog Floating Point Controls is included in the speed commands. 0-10 VDC Scalable voltage: 4-20 mA scalable current



  • Process Control: Reverse Acting and Direct PID Modes, Sleep Mode



  • From Low to High DC Voltage Monitoring, V Compensation & Low Line for Bus V Protection



  • Currently being monitored: Overload Protection for Motors Limiting the current Safeguard Protection Against Protection of Phase Loss Against Fault from Ground Short Circuits



  • Protective Fault in Follower Management Select Preset Setpoint or Preset Speed. Start the notification system

The IP31 inverter drives from SMV provide advanced auto-tuning, quick dynamic torque response, and remarkable low-speed operating in a small and easy-to-use design.

The SMV series is intended for motor applications requiring dynamic speed and torque control, such as conveyors, food processing lines, and packing equipment, and fan and pump systems.

Overload

  • 150 percent for 60 seconds
  • 200 percent for 15 seconds (up to 7,5 kW)
  • 15 seconds of 180 percent overload (11 kW to 45 kW)



Key Benefits

• Flux Vector control ensures accurate motor control.

• Easy-to-use user interface for quick setup

• Structure of parameters for easy navigation

• PID controller onboard with energy-saving "Sleep Mode" feature

• One display shows the status of all user terminals.

I/O Control Features

• Positive or negative logic

• Potentiometer with motor

• 4–20 mA and 0–10 V analog inputs with wire break detection (4–20 mA)

• Relay output status

• Keypad that may be mounted from a distance

Motor Control Features

• Auxiliary stop ramp

• UL-approved thermal overload protection system for motors

• Controller for motor brakes

• Dual rates of acceleration/declaration

• 8-speed settings

• Flying restart

• Braking using DC injection

• S ramps

• Braking with Motor Flux

• Pump rinse/Fan Purge

• 16 Step Sequencer



Product Handbooks

Options Handbooks

Transmission Handbooks

Application Note

Declaration Of Conformity
