    Factory Stock (6 Available)

    K30LGRYPQ

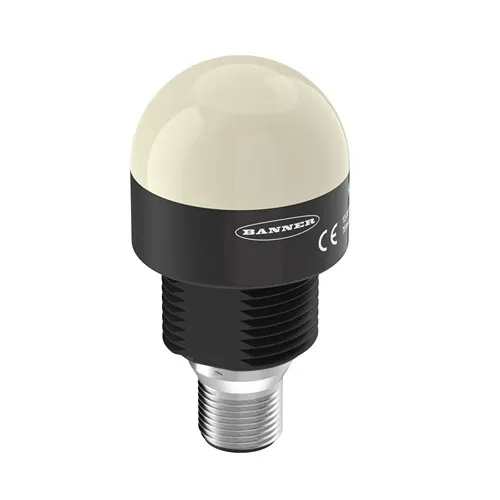

    K30 Series Ez-Light: 3-Color General Purpose Indicator; Voltage: 10-30 V Dc; Housing: Polycarbonate; Ip67 Ip69K; Input: Pnp; Colors: Green Red Yellow; M12 Integral Qd;

    HARDWARE

    ||

    BANNER-ENGINEERING

    5.00 10

    10 Review(s)
    $72.58 $60.48 / each
    1
    K30LGRYPQ
    BANNER-ENGINEERING
    FACTORY SEALED
    K30LGRYPQ.pdf
    Add To Cart Buy Now

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.

    Power
    DC
    IP Rating
    IP67, IP69K
    Display
    No
    NEMA / UL Type Rating
    UL 4X, 13
    Housing Style
    Base Mount - Dome Window
    Primary Housing Material
    Polycarbonate
    Indication
    Yes
    Mounting Thread
    M22 x 1.5
    Color Input Control
    Individual (One wire/color, same number of colors as input wires)
    Number of Colors
    3
    Product Size (mm)
    30
    Color Technology
    Standard LED
    Color Option 1
    Green
    Animation Option 1
    Solid On
    Connection
    Integral QD
    Quick Disconnect Type
    M12
    Color Option 2
    Red
    Color Option 3
    Yellow
    Max Current Color (mA)
    25
    Number of Input Pins/Conductors
    4
    Supply Voltage
    10-30 V dc
    Input Type
    PNP
    Max Input Response Time (ms)
    1
    Physical Dimensions (LxWxH or DxH mm)
    30.0 x 57.0
    Environmental Rating
    IP67; IP69K
    Max Op. Relative Humidity Non-Condensing (%)
    90% @ 50°C
    High Temperature (up to 100° C)
    50
    Min Op. Temperature (°C)
    -40
    Storage Temp (°C)
    -40 to 70
    Primary Housing Color
    Black
    Primary Window Material
    Polycarbonate Diffused
    Feature: Washdown Rated
    Yes
    Feature: Audible
    No
    Multi-Color Device
    Single Color On
    Feature: Quick Disconnect
    Yes
