BANNER-ENGINEERING

    Factory Stock (2 Available)

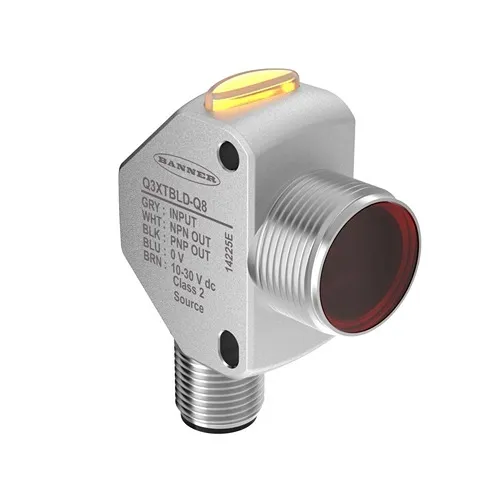

    Q3XTBLD-Q8

    Q3Xt Series: Laser Diffuse; Range: 300 Mm; Input: 10-30 V Dc; Outputs: Bipolar: 1 Npn; 1 Pnp; 5-Pin M12 Integral Qd;


    $290.30 $241.92 / each
    1
    Q3XTBLD-Q8
    BANNER-ENGINEERING
    FACTORY SEALED
    Q3XTBLD-Q8.pdf
    Add To Cart Buy Now

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    IP Rating
    IP67, IP68, IP69K
    Sensing Beam
    Visible Red Laser
    NEMA / UL Type Rating
    NEMA 4X
    Power
    DC
    Sensing Mode (General)
    Proximity
    Sensing Mode (Detailed)
    Diffuse/Background Suppression
    Housing Style
    Rectangular w/M18 Mount
    Primary Housing Material
    Nickel-Plated
    Laser Classification
    Class 2
    Small Visible Spot
    Laser
    Input Output
    Discrete
    Max Sensing Distance (mm)
    300
    Outputs
    Bipolar (NPN & PNP)
    Power Supply/Supply Voltage
    10-30 V dc
    Connection
    Integral QD
    Quick Disconnect Type
    M12
    Min Op. Temp. (°C)
    -10
    Operation
    Light/Dark Operate
    Max Op. Temp. (°C)
    50
    Output response time (ms)
    0.25
    Special Feature: Intrinsically Safe
    No
    Special Feature: Remote Teach
    Yes
    Special Feature: Water Detection
    No
    Sensing Beam Wavelength
    655
    Delay at Power-up (ms)
    1000
    Repeatability (µs)
    60
    Number of Pins
    5
    Max Op. Relative Humidity [%]
    95% @ 55°C
    Lens Material
    Acrylic
    Adjustments
    Teach Button
    Barrel Diameter (mm)
    18
    Indicator
    LEDs
    Feature: Washdown Rated
    Yes
    Feature: Timing (Hold/Delay)
    Yes
    Feature: Audible
    No
    Feature: Quick Disconnect
    Yes
