BANNER-ENGINEERING

    Factory Stock (5 Available)

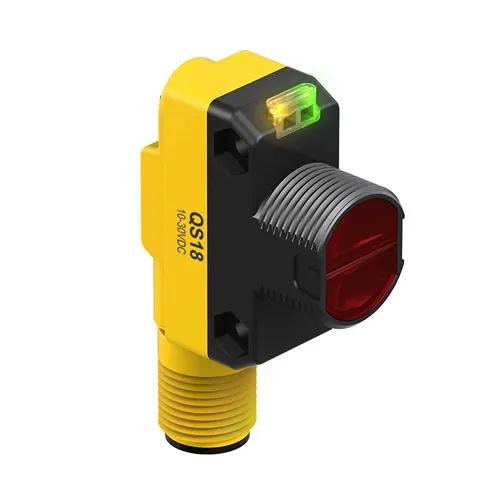

    QS18VP6FF100Q8

    World-Beam Qs18 Series: Fixed-Field; Range: 100 Mm Cutoff; Output: Complementary Solid-State Pnp; M12 Integral Qd;


    $102.82 $85.68 / each
    1
    QS18VP6FF100Q8
    BANNER-ENGINEERING
    FACTORY SEALED
    Add To Cart Buy Now

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    IP Rating
    IP67
    Sensing Beam
    Visible Red LED
    NEMA / UL Type Rating
    NEMA 4X
    Power
    DC
    Sensing Mode (General)
    Proximity
    Sensing Mode (Detailed)
    Background Suppression (Fixed)
    Housing Style
    Rectangular w/M18 Mount
    Primary Housing Material
    ABS
    Small Visible Spot
    LED
    Input Output
    Discrete
    Max Sensing Distance (mm)
    100
    Outputs
    PNP
    Power Supply/Supply Voltage
    10-30 V dc
    Connection
    Integral QD
    Quick Disconnect Type
    M12
    Min Op. Temp. (°C)
    -20
    Operation
    Light/Dark Operate
    Max Op. Temp. (°C)
    70
    Output response time (ms)
    0.85
    Sensing Beam Wavelength
    630
    Delay at Power-up (ms)
    100
    Repeatability (µs)
    160
    Number of Pins
    4
    Max Op. Relative Humidity [%]
    95% @ 50°C
    Lens Material
    Acrylic
    Adjustments
    N/A
    Barrel Diameter (mm)
    18
    Indicator
    LEDs
    Feature: Audible
    No
    Feature: Quick Disconnect
    Yes
