EBM PAPST

    R2E180-AT06-15

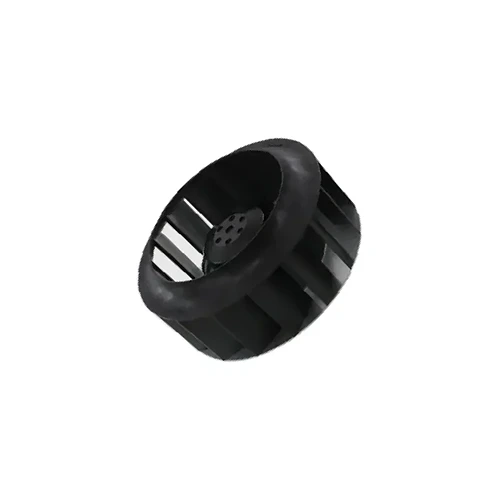

    R2E180 Series Motorized Impeller Fan Blower, IP44, 230 VAC, AC, Size 180 mm, 432.6 CFM, Motor Bearing - Ball, Number of Blades - 16


    $0.00
    1
    R2E180-AT06-15
    EBM PAPST
    Brand New
    12 Months
    Out Of Stock

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.

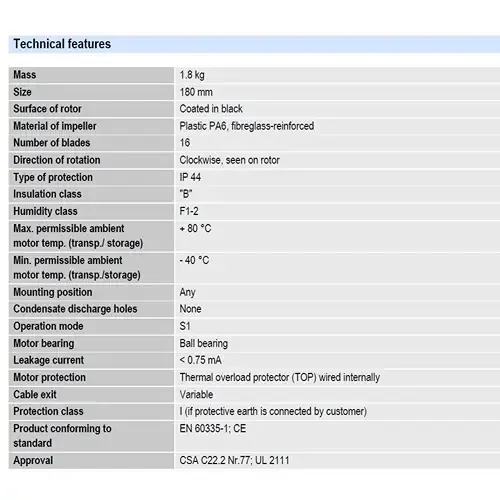

    TECHNICAL SPECIFICATIONS

    PART #R2E180-AT06-15
    Mass1.8 kg
    Size180 mm
    Impeller materialsPA6 Plastic, reinforced with fiberglass
    Surface of rotorCoated in black
    Rotational directionOn the rotor, clockwise
    Number of blades16
    Insulation type"B"
    Type of protectionIP 44
    Maximum permitted ambient temperature
    motor temp. (transp./ storage)
    - 40 °C
    Humidity classF1-2
    Minimum permitted ambient temperature
    motor temp. (transp./storage)
    + 80 °C
    Operation modeS1
    Mounting positionAny
    Condensate discharge holesNone
    Motor protectionThermal overload protector (TOP) wired internally
    Bearings for motorsBall
    Leakage current< 0>
    Product conforming to
    standard
    EN 60335-1; CE
    Cable exitVariable
    ApprovalCSA C22.2 Nr.77; UL 2111
    Protection classI (if protective earth is connected by customer)

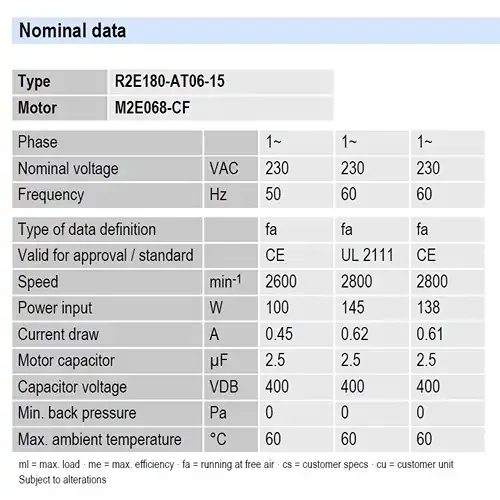

    NOMINAL INFORMATION

    Part #


    R2E180-AT06-15
    Mechanism


    M2E068 -CF
    Phase
    1~
    1~1~
    Voltage of NominalVAC
    230230230
    FrequencyHz
    506060
    Definition of the data type
    fa
    fafa
    Acceptable as an approval/standard
    CEUL 2111CE
    Speedmin -1
    260028002800
    Input of energyW
    100145138
    Draw of currentA
    0.450.620.61
    Capacitor of motorμF
    2.52.52.5
    Voltage of capacitorVDB
    400400400
    Min. Back PressurePa000
    Temperature of Max. Ambient°C
    606060
    Max. efficiency fa =Running at free air ml =Max. load me



    cu =Customer unit cs Customer specs
