BANNER-ENGINEERING

    Factory Stock (2 Available)

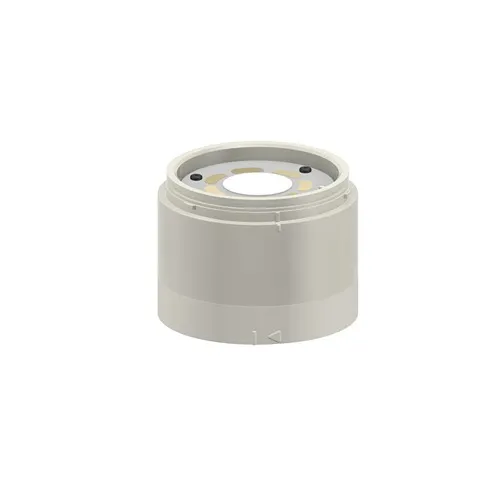

    SG-TL70-BC

    Tl70 Light Module; Color: Blue; Voltage: 12-30 V Dc; Environmental Rating: Ip65; Steady On/Flashing; Gray Housing;


    $82.66 $68.88 / each
    1
    SG-TL70-BC
    BANNER-ENGINEERING
    FACTORY SEALED
    SG-TL70-BC.pdf
    Add To Cart Buy Now

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    Power
    DC or AC
    IP Rating
    IP65
    Display
    No
    Housing Style
    Segment - Light
    Primary Housing Material
    Polycarbonate
    Indication
    Yes
    Mounting Thread
    No Thread
    Color Input Control
    Individual (One wire/color, same number of colors as input wires)
    Number of Colors
    1
    Product Size (mm)
    70
    Color Technology
    Standard LED
    Number of Tower Light Segments
    1
    Color Option 1
    Blue
    Animation Option 1
    Dip-Switch Controlled
    Lumens Color 1
    32.0
    Color 1 - Wavelength/Color Temp/Coordinates
    470 nm
    Max Current Color (mA)
    420
    Physical Dimensions (LxWxH or DxH mm)
    70.0 x 50.0
    Environmental Rating
    IP65
    Max Op. Relative Humidity Non-Condensing (%)
    95% @ 50°C
    High Temperature (up to 100° C)
    50
    Min Op. Temperature (°C)
    -40
    Storage Temp (°C)
    -40 to 70
    Primary Housing Color
    Gray
    Primary Window Material
    Polycarbonate Diffused
    Feature: Audible
    No
