Quality Assurance
OEM Quality Spare Parts.

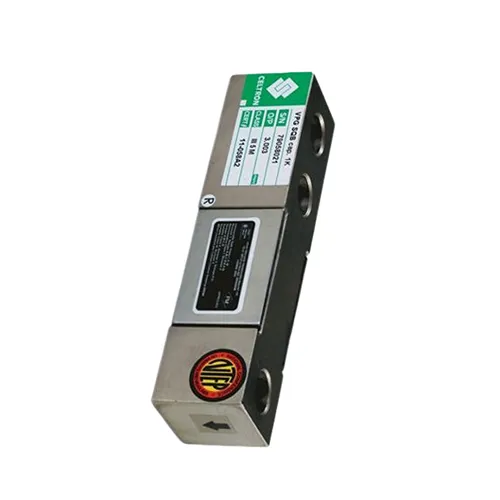

- Manufacturer: Celtron
- Model: SQB-20K 20,000 lb
- Approvals: cFM
- Capacity Rating: 20,0000 lb / 9071.9 kg
- Safe Overload: 150% capacity
- Height: 2"
- Length: 8.88"
- Width: 2"
- Hole Threading: 1-14UNS
- Construction / Finish: High-alloy steel, nickel plated
- Cable Color Code: Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
- Rated Excitation: 5-10 VDC (maximum of 15 V)
- Full Scale Output: 3 mV/V
- Output Resistance: 350 (+/- 3) ohms
- Input Resistance: 385 (+/- 5) ohms
- Seal Type: IP67 Environmentally Sealed
- Combined Error: 0.02% full scale
- Insulation Resistance: 5000 megohms
- Cable Length: 20 ft
- Cable Diameter: 0.200 polyurethane jacket
- Interchange: RL35023, VPG Sensortronics 65023A
- Weigh Modules Available: Rice Lake RL50210, RL 1800 Series
