TL50GYRQ

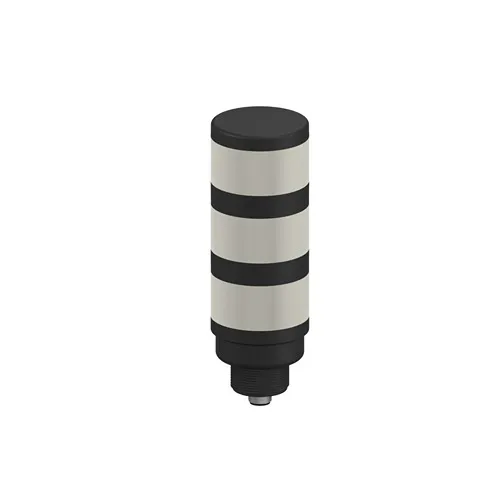

Tl50 Tower Light: 3-Color Indicator; Voltage: 18-30 V Dc Or 24 V Ac; Environmental Rating: Ip67; Input: Bimodal; Colors: Green Yellow Red; 4-Pin M12 Integral Qd;

INDICATOR

||

BANNER-ENGINEERING

5.00 10

10 Review(s)
$154.22 $128.52 / each
1
TL50GYRQ
BANNER-ENGINEERING
FACTORY SEALED
TL50GYRQ.pdf

  • Quality Assurance

    OEM Quality Spare Parts.

  • Secure Shopping

    100% Money Back Guarantee.

  • 30-DAY RETURNS

    30 Days After-sales Return.

  • Worldwide Delivery

    Worldwide Fast Shipping.

Power
DC or AC
IP Rating
IP67
Display
No
NEMA / UL Type Rating
NEMA and UL 13
Housing Style
Base Mount - Tower
Primary Housing Material
ABS
Indication
Yes
Mounting Thread
M30 x 1.5
Color Input Control
Individual (One wire/color, same number of colors as input wires)
Number of Colors
3
Product Size (mm)
50
Color Technology
Standard LED
Number of Tower Light Segments
3
Color Option 1
Green
Animation Option 1
Solid On
Connection
Integral QD
Quick Disconnect Type
M12
Lumens Color 1
23.0
Color 1 - Wavelength/Color Temp/Coordinates
528 nm
Color Option 2
Yellow
Animation Option 2
Solid On
Lumens Color 2
5.0
Color 2 - Wavelength/Color Temp/Coordinates
590 nm
Color Option 3
Red
Animation Option 3
Solid On
Lumens Color 3
7.5
Color 3 - Wavelength/Color Temp/Coordinates
625 nm
Max Current Color (mA)
45
Number of Input Pins/Conductors
4
Supply Voltage
18-30 V dc/24 V ac
Input Type
Bimodal (PNP/NPN)
Max Input Response Time (ms)
10
Physical Dimensions (LxWxH or DxH mm)
50.0 x 169.9
Environmental Rating
IP67
Max Op. Relative Humidity Non-Condensing (%)
95% @ 50°C
High Temperature (up to 100° C)
50
Min Op. Temperature (°C)
-40
Storage Temp (°C)
-40 to 70
Primary Housing Color
Black
Primary Window Material
Polycarbonate Diffused
Feature: Audible
No
Multi-Color Device
Simultaneous Colors On
Feature: Quick Disconnect
Yes
