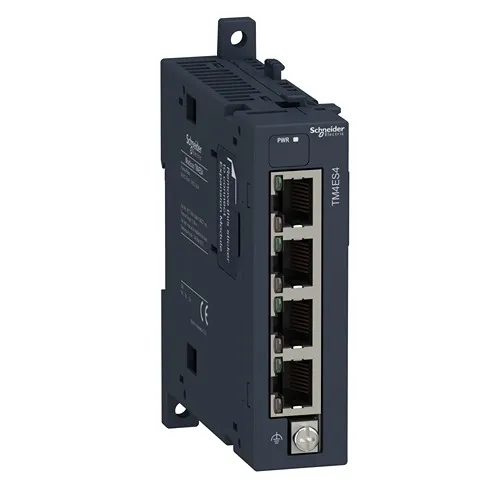

TM4ES4
Network Switch Module, Modicon M241, 4 Ethernet Switchs
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| product or component type | Ethernet unmanaged switch |
|---|
| Range compatibility | Modicon M251 Modicon M241 |
|---|---|
| Product compatibility | Modicon M241 logic controller Modicon M251 logic controller |
| Current consumption | 360 mA 5 V DC communication bus |
| Integrated connection type | Ethernet 4 RJ45 |
| Transmission rate | 10/100 Mbit/s |
| Port Ethernet | 10BASE-T/100BASE-TX - 4 copper cable |
| Web services | Web server |
| Communication service | Modbus TCP server Modbus TCP slave device FTP NGVL Monitoring IEC VAR ACCESS Programming SNMP Modbus TCP client Downloading Updating firmware Ethernet/IP slave device DHCP client |
| Maximum number of connections | 8 Modbus server 16 Ethernet/IP device |
| Communication port protocol | Ethernet IP/Modbus TCP TCP (Transmission Control Protocol) UDP (User Datagram Protocol) SNMP |
| Redundancy | No |
| Local signalling | PWR 1 LED green) Ethernet link 1 LED per channel green/yellow) Ethernet port activity 1 LED per channel green) |
| Electrical connection | RJ45 4 connectors for connecting Ethernet network Screw connector terminal for connecting the functional ground |
| marking | CE |
| Surge withstand | 1 kV power lines (DC) common mode IEC 61000-4-5 2 kV power lines (AC) common mode IEC 61000-4-5 2 kV relay output common mode IEC 61000-4-5 1 kV I/O common mode IEC 61000-4-5 1 kV shielded cable common mode IEC 61000-4-5 0.5 kV power lines (DC) differential mode IEC 61000-4-5 1 kV power lines (AC) differential mode IEC 61000-4-5 1 kV relay output differential mode IEC 61000-4-5 0.5 kV I/O differential mode IEC 61000-4-5 |
| Mounting support | Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit |
| Width | 0.98 in (25 mm) |
| Height | 3.54 in (90 mm) |
| Depth | 3.54 in (90 mm) |
| net weight | 0.28 lb(US) (0.125 kg) |
| Standards | UL 508 IEC 61131-2 |
|---|---|
| Product certifications | cULus C-Tick |
| Resistance to electrostatic discharge | 8 kV in air IEC 61000-4-2 4 kV on contact IEC 61000-4-2 8 kV in air Marine specification (LR, ABS, DNV, GL) 6 kV on contact Marine specification (LR, ABS, DNV, GL) |
| Resistance to electromagnetic fields | 9.14 V/yd (10 V/m) 80 MHz...1 GHz IEC 61000-4-3 2.74 V/yd (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3 0.91 V/yd (1 V/m) 2...2.7 GHz IEC 61000-4-3 |
| Resistance to fast transients | 2 kV IEC 61000-4-4 power lines) 2 kV IEC 61000-4-4 relay output) 1.5 kV IEC 61000-4-4 I/O) 1 kV IEC 61000-4-4 Ethernet line) 1 kV IEC 61000-4-4 serial link) |
| Resistance to conducted disturbances | 10 V 0.15...80 MHz IEC 61000-4-6 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL) |
| Electromagnetic emission | Conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15…0.5 MHz IEC 55011 Conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5…300 MHz IEC 55011 Conducted emissions 120...69 dBµV/m QP power lines)10…150 kHz IEC 55011 Conducted emissions 63 dBμV/m QP power lines)1.5…30 MHz IEC 55011 Radiated emissions 40 dBμV/m QP class A30…230 MHz IEC 55011 Radiated emissions 60...54 dBμV/m QP30…100 MHz Marine specification (LR, ABS, DNV, GL) Radiated emissions 24 dBμV/m QP156…165 MHz Marine specification (LR, ABS, DNV, GL) Conducted emissions 79...63 dBμV/m QP power lines)150…1500 kHz IEC 55011 Radiated emissions 47 dBμV/m QP class A230…1000 MHz IEC 55011 Radiated emissions 80...50 dμV/m QP150…30000 kHz Marine specification (LR, ABS, DNV, GL) Radiated emissions 54 dBμV/m QP100…2000 MHz Marine specification (LR, ABS, DNV, GL) |
| Ambient air temperature for operation | 14…131 °F (-10…55 °C) horizontal installation 14…122 °F (-10…50 °C) vertical installation |
| ambient air temperature for storage | -13…158 °F (-25…70 °C) |
| Relative humidity | 10…95 %, without condensation in operation) 10…95 %, without condensation in storage) |
| IP degree of protection | IP20 with protective cover in place |
| Pollution degree | 2 |
| Operating altitude | 0...2000 m |
| Storage altitude | 0.00…9842.52 ft (0…3000 m) |
| Vibration resistance | 1 mm 5…13.2 Hz symmetrical rail 3 gn 8.7…150 Hz symmetrical rail 1 mm 5…13.2 Hz panel mounting 0.7 gn 13.2…100 Hz panel mounting |
| Shock resistance | 15 gn 11 ms |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.22 in (5.635 cm) |
| Package 1 Width | 4.54 in (11.532 cm) |
| Package 1 Length | 6.71 in (17.033 cm) |
| Package 1 Weight | 7.41 oz (210.0 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 11.81 in (30 cm) |
| Package 2 Width | 11.81 in (30 cm) |
| Package 2 Length | 15.75 in (40 cm) |
| Package 2 Weight | 11.11 lb(US) (5.04 kg) |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 160 |
| Package 3 Height | 29.53 in (75 cm) |
| Package 3 Width | 23.62 in (60 cm) |
| Package 3 Length | 31.50 in (80 cm) |
| Package 3 Weight | 105.82 lb(US) (48 kg) |
