TM5C24D18T

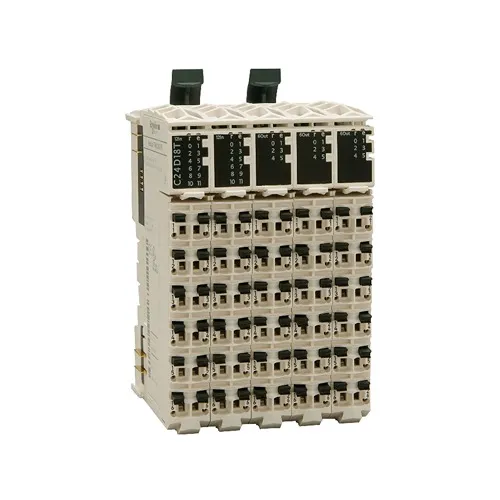

Compact I/O Expansion Block, Modicon Tm5, 42 Io, 24 Di, 18 Do, Transistor
/ each
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Range of product | Modicon TM5 |
|---|---|
| product or component type | Compact I/O expansion block |
| Enclosure material | Plastic |
|---|---|
| Colour | White |
| input/output number | 42 |
| for enclosure nominal dimensions | 24 I + 18 O |
| Number of modules | Digital input: 2 module(s) x 12 Digital output: 3 module(s) x 6 |
| Discrete input number | 24 |
| Discrete input voltage | 24 V |
| discrete input voltage type | DC |
| Input voltage limits | 20.4...28.8 V |
| Discrete input logic | Sink |
| Discrete input current | 3.75 mA |
| Input impedance | 6.4 kOhm |
| analogue input number | 0 |
| Discrete output number | 18 |
| discrete output type | Transistor |
| Wiring mode | 1 wire for discrete input 2-wire for discrete output |
| Output voltage | 24 V DC |
| Output voltage limits | 20.4...28.8 V DC |
| discrete output logic | Source |
| Discrete output current | 0.5 A per output |
| Peak output current | 9 A |
| Voltage state 0 guaranteed | |
| Voltage state 1 guaranteed | >= 15 V |
| Input filtering | |
| Response time | |
| Maximum leakage current | 5 µA (when switched off) for output |
| Isolation | 500 Vrms AC insulation between channel and bus No insulation between channels |
| Maximum voltage drop | |
| Current consumption | 70 mA at 5 V DC bus 140 mA at 24 V DC input/output |
| Max current | 9000 mA loads on I/O power segment |
| Maximum power dissipation in W | 3.71 W |
| Local signalling | 5 LEDs (green) for power supply 5 LEDs (red) for power supply 24 LEDs (green) for input status 18 LEDs (yellow) for output status |
| Electrical connection | Removable spring terminal block |
| marking | CE |
| Surge withstand | 0.5 kV differential mode 24 V DC conforming to IEC 61000-4-5 1 kV common mode 24 V DC conforming to IEC 61000-4-5 |
| Electromagnetic compatibility | EN/IEC 61000-4-6 |
| Disturbance radiated/conducted | CISPR 11 |
| Standards | IEC 61131-2 UL 508 CSA C22.2 No 213 CSA C22.2 No 142 |
|---|---|
| Product certifications | C-Tick cULus GOST-R CSA |
| Ambient air temperature for operation | -10…50 °C (vertical installation) -10…60 °C (horizontal installation) |
| ambient air temperature for storage | -40…70 °C |
| Relative humidity | 5…95 % without condensation |
| IP degree of protection | IP20 conforming to IEC 61131-2 |
| Pollution degree | 2 conforming to IEC 60664 |
| Operating altitude | 0...2000 m |
| Storage altitude | 0…3000 m |
| Vibration resistance | 1 gn at 8.4…150 Hz on DIN rail 3.5 mm at 5…8.4 Hz on DIN rail |
| Shock resistance | 15 gn for 11 ms |
| Resistance to electrostatic discharge | 4 kV on contact conforming to IEC 61000-4-2 8 kV in air conforming to IEC 61000-4-2 |
| Resistance to electromagnetic fields | 1 V/m 2...2.7 GHz conforming to IEC 61000-4-3 10 V/m 80...2000 MHz conforming to IEC 61000-4-3 |
| Resistance to fast transients | 1 kV (I/O) conforming to IEC 61000-4-4 1 kV (shielded cable) conforming to IEC 61000-4-4 2 kV (power lines) conforming to IEC 61000-4-4 |
| Mounting support | DIN rail |
| net weight | 0.24 kg |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.500 cm |
| Package 1 Width | 9.000 cm |
| Package 1 Length | 11.000 cm |
| Package 1 Weight | 278.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 36 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 10.008 kg |
