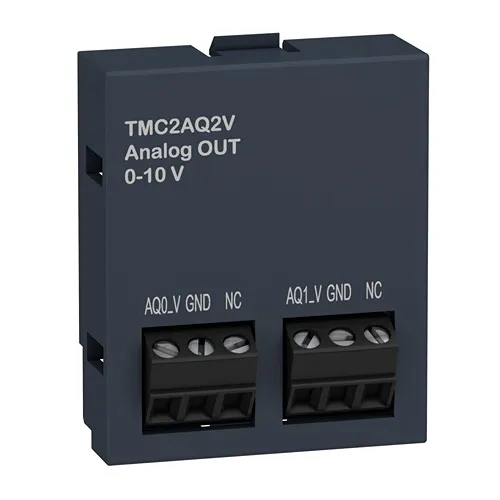

TMC2AQ2V
Analogue Output Cartridge, Modicon M221, 2 Analog Voltage Outputs, Io Extension
/ each
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Range of product | Modicon M221 |
|---|---|
| product or component type | Analogue output cartridge |
| Product compatibility | Modicon M221C |
| analogue output number | 2 |
|---|---|
| Analogue output type | Voltage 0...10 V |
| analogue output resolution | 12 bits |
| LSB value | 2.44 mV 0...10 V voltage |
| Load type | Resistive |
| Load impedance ohmic | >= 2 kOhm |
| Conversion time | 20 ms |
| Stabilisation time | 40 ms |
| Absolute accuracy error | +/- 1 % of full scale +/- 0.3 % of full scale at 77 °F (25 °C) |
| Temperature drift | +/- 0.02 %FS/°C |
| Repeat accuracy | +/- 0.4 %FS |
| Non-linearity | +/- 0.01 %FS |
| Cross talk | |
| Type of cable | Twisted shielded pairs cable |
| Electrical connection | 3 x 1.5 mm² 2 screw terminal blocks pitch 3.81 mm for outputs |
| Maximum cable distance between devices | Twisted shielded pairs cable |
| Insulation | Non-insulated between analogue output and internal logic |
| Height | 1.61 in (41 mm) |
| Depth | 0.59 in (15 mm) |
| Width | 1.38 in (35 mm) |
| net weight | 0.03 lb(US) (0.015 kg) |
| Immunity to microbreaks | 10 ms |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.38 in (3.5 cm) |
| Package 1 Width | 2.76 in (7.0 cm) |
| Package 1 Length | 1.81 in (4.6 cm) |
| Package 1 Weight | 0.71 oz (20.0 g) |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 75 |
| Package 2 Height | 5.91 in (15 cm) |
| Package 2 Width | 11.81 in (30 cm) |
| Package 2 Length | 15.75 in (40 cm) |
| Package 2 Weight | 7.40 lb(US) (3.356 kg) |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 1200 |
| Package 3 Height | 29.53 in (75 cm) |
| Package 3 Width | 23.62 in (60 cm) |
| Package 3 Length | 31.50 in (80 cm) |
| Package 3 Weight | 165.35 lb(US) (75 kg) |
