EBM-PAPST

W2E143-AA15-01

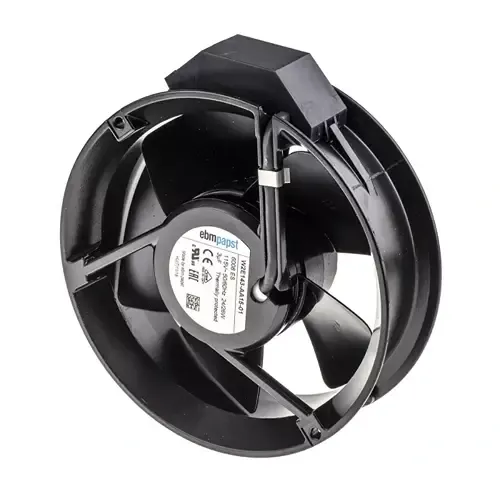

W2E143-AA15-01 - 172MM ROUND FAN  WITH TUBEAXIAL HAVING HEIGHT 172MM, DEPTH 51MM, VOLTAGE OF OPERATING SUPPLY 115 VAC, TYPE OF BEARING IS BALL WITH SPEED 3300 RPM, EBM-PAPST


$0.00
109611
W2E143-AA15-01
Out Of Stock

  • Quality Assurance

    OEM Quality Spare Parts.

  • Secure Shopping

    100% Money Back Guarantee.

  • 30-DAY RETURNS

    30 Days After-sales Return.

  • Worldwide Delivery

    Worldwidely Fast Shipping.


PART #W2E143-AA15-01
SKU109611
Manufacturer:EBM-PAPST
Product classification:AC Fans
Type:Tubeaxial
Height:172 mm
Depth:51 mm
Width:172 mm
Voltage of Operating Supply:115 VAC

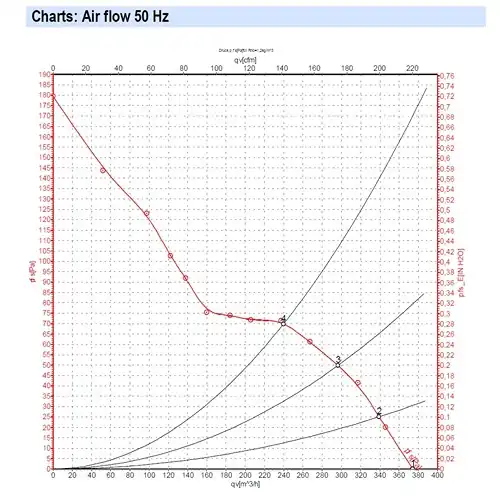

Airflow:259 CFM (7.3 m3/min)
Type of Bearing:Ball
Noise:60 DBA
Speed:3300 RPM
Power Level:26 W
Housing Composition:Aluminum
Style of Termination:Wire Leads
IP Rating:IP20
Brand:EBM-PAPST
Current Type:AC
Product Type:AC Fans

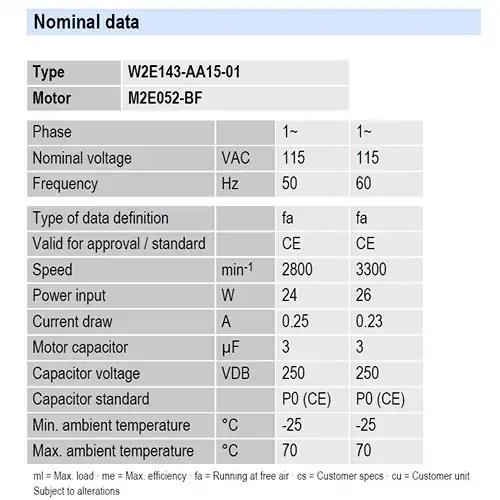

NOMINAL INFORMATION

Part #


W2E143-AA15-01
Mechanism


M2E052 -BF
Phase

1~
1~
Voltage of Nominal
VAC
115
115
Frequency
Hz
50
60
Definition of the data type
fafa
Acceptable as an approval/standard
CECE
Speed
min -128003300
Input of energyW2426
Draw of current
A0.250.23
Capacitor of motor
μF
33
Voltage of capacitor
VDB250250
Standard of capacitor

P0 (CE)P0 (CE)
Temperature of Min. Ambient
°C
-25-25
Temperature of Max. Ambient
°C
7070
Max. efficiency fa =Running at free air ml =Max. load me



cu =Customer unit cs Customer specs
