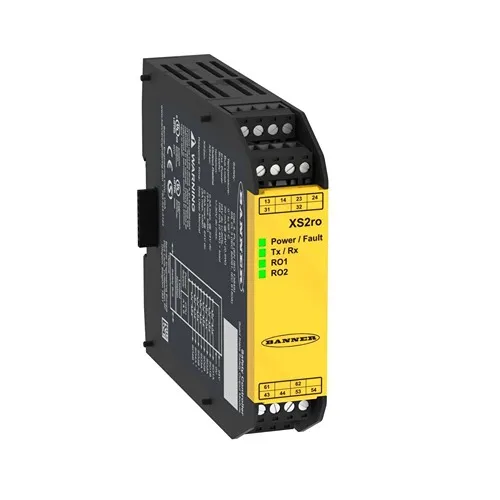

XS2RO

Safety Controller Expansion Module: Dual Relay Output Module; Safety Outputs: 4 No, 6 A; Aux Outputs: 2 Nc, 2.5 A; Used With Xs26-2 Safety Controllers;

CONTROLLERS

||

BANNER-ENGINEERING

5.00 10

10 Review(s)
$527.18 $439.32 / each
1
XS2RO
BANNER-ENGINEERING
FACTORY SEALED
XS2RO.pdf

  • Quality Assurance

    OEM Quality Spare Parts.

  • Secure Shopping

    100% Money Back Guarantee.

  • 30-DAY RETURNS

    30 Days After-sales Return.

  • Worldwide Delivery

    Worldwide Fast Shipping.

IP Rating
IP20
Device Type
Safety Controller
In-Series Diagnostics
No
Safety Module Type
Output Module
LCD Display
No
Expandable
Yes
Dimension (H x W x D in mm)
110 x 22.5 x 129
Relative Humidity
90% @ 50° C
Max Operating Temperature ( °C)
55
Independently Controlled Safe Outputs
2
Output Configuration
2 sets of 2 NO
Non Safe Output Configuration
2 separate NC
Non Safe Output Rating
N/A
Safe Output Rating
Relay - 4 NO: 6A; 2 NC: 2.5A
Splittable Safe Output
No
Mechanical Life (Operations in Millions)
40
Power Consumption
0.15 A (outputs on)
Response Time (ms)
See Software Configuration Summary
Terminal Type
Screw
Removable Terminals
Yes
Vibration
9-150 Hz at 1g occasional/0.5g continuous
Electrical Life (Cycles @ VA)
50,000 @ full resistive load
PL Rating
e
Safety Category Rating
4
SIL Rating
3
SISTEMA
PFHd = 7.6 x 10-10
Gate Switch (NC/NC) Input
No
Gate Switch (NC/NO) Input
No
Gate Switch (OSSD) Input
No
Light Curtains/Scanner with EDM Input
No
Light Curtains/Scanner without EDM Input
No
