542011

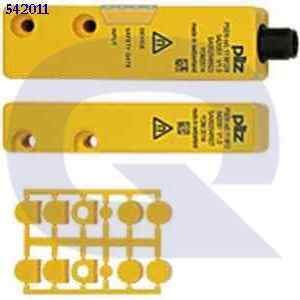

RFiD safety switch 2 safe SC outputs, 8-pin M12 male connector, support for SDD, IP67, 4 actuation directions, switching distance (actuator at square marking): 11 mm, Sao = 8 mm, Sar = 20 mm, PU = 1 piece coded switch with actuator, magnetic latching holding force 30 N.
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
General data
| Approval | CE  cULus Listed  FCC  IC  TÜV  ECOLAB  EAC (Eurasian)  |
| Sensor principle | Transponder  |
| Coding level to ISO 14119 | Low  |
| Classification to EN 60947-5-3 | PDDB Â |
| Transponder coding | coded  |
| Suitable for series connection | yes  |
| unit type | Unit  |
Â
Technical data
Electrical data
| Supply voltage (V) | 24 Â V |
| Type of supply voltage U1 | DC Â |
| Power consumption DC | 1 Â W |
Inputs
| Number of inputs | 2 Â |
| DC voltage at input | 24 V DC Â |
Semiconductor outputs
| Number of OSSD outputs | 2 Â |
| Number of sig. outputs | 1 Â |
| Potential isolation S/C O | No  |
| S/C output short circuit proof | Yes  |
| Utilisation cat. to ENÂ 60947-1 | DC-12 Â |
Environmental data
| Ambient temperature standard | EN 60068-2-14 Â |
| Ambient temperature | -25 - 70  °C |
| Max. ambient temp. at Hmax | +60 °C  |
| Max. ambient temp. at 2000 m | +70 °C  |
| Storage temperature standard | EN 60068-2-1/-2 Â |
| Climatic suitability standard | EN 60068-2-30 Â |
| Humidity rating | 93 % r. h. at 40 °C  |
| Perm. operating height ASL | 4000 m  |
| EMC to standard ... | EN 60947-5-3 Â |
| Vibration to standard ... | EN 60947-5-2 Â |
| Acc. shock to standard1 | 30g  |
| Overvoltage category | III Â |
| Pollution degree clear.&creep. | 3 Â |
| Protection type, housing | Â Â |
Switching distances
| Change op. dist. temp.change | +-0.02mm/°C  |
Mechanical data
| Holding force magnet | 30 Â N |
| Type 1 actuator | PSEN cs5.11 M12 Â |
| Sensor can be flush-mounted | Yes, follow installation guide  |
| Connection type | M12, 8-pin male  |
| Product material | PBT  PA+GF  Polycarbonate  |
| Height dimension | 26.4 Â mm |
| Width dimension | 101.6 Â mm |
| Depth dimension | 19 Â mm |
| Net weight | 135 Â g |
| Gross weight | 155 Â g |
Transponder
| Operating frequency | 122 kHz - 128 kHz  |
