AI-M-20LA

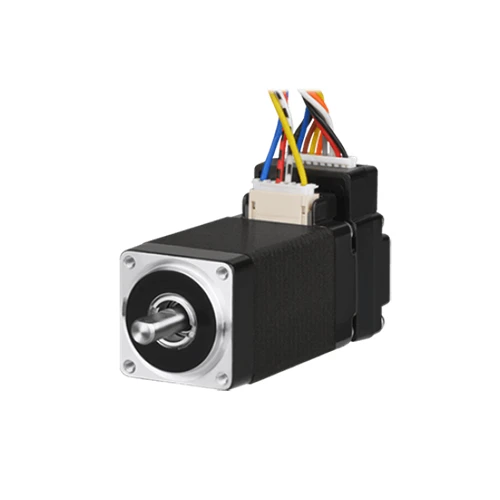

2-Phase Closed-Loop Stepper Motor, 20mm Square, Single Shaft, 0.6A/Phase, 0.357Kgf.cm / 0.035N.m
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Basic Step Angle [FULL/HALF] | 1.8º/0.9º |
|---|---|
| Max. holding torque | 0.357kgf.cm |
| Rotor Moment Of Inertia | 2g·cm² |
| Winding Resistance | 10.5? |
| Rated current | 0.6A/Phase |
| Motor length | 53.1mm |
| Shaft type | Single shaft |
| Operation method | Bipolar constant current Drive |
| Resolution | 4,000PPR(1,000PPR×4-multiply) |
| Output phase | A, @(A^), B, @(B^), Z, @(Z^) |
| Max. response frequency | 200kHz |
| Protection structure | IP30 |
| Motor phase | 2-Phase |
| Number Of Axes | 1-axis |
| Environment_Ambient temperature | 0 to 50℃, storage: -20 to 70℃ |
| Environment_Ambient humidity | 20 to 85%RH, storage: 15 to 90%RH |
| Weight | Approx. 0.219kg (approx. 0.120kg) |
