AIS-20LA

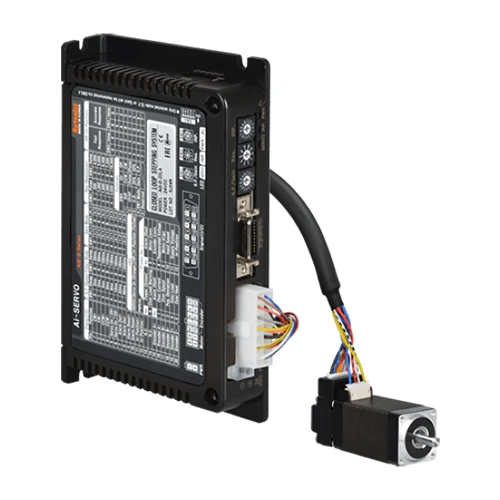

2-Phase Closed-Loop Stepper Driver & Motor, AiS-D-20LA Driver(0.6A/Phase) + Ai-M-20LA Motor(0.357kgf.cm/0.035N.m), 24VDC

MOTORS

||

AUTONICS

5.00 10

10 Review(s)
$768.58 $640.48 / each
1
AIS-20LA
AUTONICS
FACTORY SEALED
  • Quality-checked industrial automation parts
  • Secure ordering with responsive customer support
  • Worldwide shipping for critical replacement parts
Fast Delivery
Top Brands
Worldwide Delivery
Secure Transaction

  • Quality Assurance

    OEM Quality Spare Parts.

  • Secure Shopping

    100% Money Back Guarantee.

  • 30-DAY RETURNS

    30 Days After-sales Return.

  • Worldwide Delivery

    Worldwide Fast Shipping.

  • AIS-20LA
  • Manufacturer: Autonics
  • Driver_Applied Motor: Frame size 20mm, shaft type
  • Driver_Power supply: 24VDC
  • Driver_Max. Run Current: 0.6A/Phase
  • Driver_Max. Power consumption: 50W
  • Driver_Protection structure: IP20
  • Motor_Max. Holding Torque: 0.357kgf.cm
  • Motor_Winding Resistance: 10.5Ω
  • Motor_Rated Current: 0.6A/Phase
  • Motor_Motor length: 53.1mm
  • Motor_Shaft Type: Single shaft
  • Motor_Operation: Bipolar constant current Drive
  • Motor_Number Of Axes: 1-axis
  • Motor_Max. response frequency: 200kHz
  • Motor_Protection structure: IP30
  • Motor phase: 2-Phase
  • Driver_Environment_Ambient temperature: 0 to 50℃, storage: -20 to 70℃
  • Driver_Environment_Ambient humidity: 35 to 85%RH, storage: 10 to 90%RH
  • Driver_Weight: Approx. 400g
  • Motor_Weight: Approx. 0.219kg

The exact weight of the cargo you've scheduled will be measured at the QUANTUM FIRST AUTOMATION office. We will send you an email with a payment link if the weight difference is larger than the shipment amount. The payment link email will include the new weight and the difference amount that must be paid. If you have any queries concerning this procedure, please contact our customer support team at +1-905-625-3500.
