    AIS-60LA-B

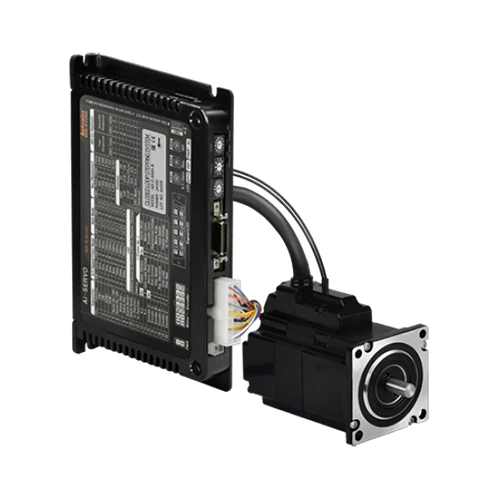

    2-Phase Closed-Loop Stepper Driver & Motor, AiS-D-60LA-B Driver(3.5A/Phase) + Ai-M-60LA-B Motor(29.57Kgf.cm/2.9N.m), Built-in brake, 24VDC

    MOTORS

    ||

    AUTONICS

    5.00 10

    10 Review(s)
    $1,111.67 $926.39 / each
    1
    AIS-60LA-B
    AUTONICS
    FACTORY SEALED

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.

    Driver_Operation MethodBipolar constant current Drive
    Driver_Applied MotorFrame size 60mm, shaft type, built-in brake type 2-phase closed-loop stepper motor(Ai-M-60LA-B)
    Driver_Resolution500, 1000, 1600, 2000, 3200, 3600, 5000, 6400, 7200, 10000(SW2)
    Driver_Power supply24VDC ⎓
    Driver_Max. Run Current3.5A/Phase
    Driver_Max. Power consumption240W
    Driver_OutputIn-Position, Alarm Out, Brake, Encoder signal(A, @(A^), B, @(B^), Z, @(Z^))
    Driver_Protection structureIP20
    Driver_ApprovalCE
    Motor_Basic Step Angle [FULL/HALF]1.8º/0.9º
    Motor_Max. Holding Torque29.57kgf.cm
    Motor_Rotor Moment Of Inertia690g·cm²
    Motor_Winding Resistance1.3?
    Motor_Rated Current3.5A/Phase
    Motor_Motor length154.6mm
    Motor_Shaft TypeSingle shaft
    Motor_Operation MethodBipolar constant current Drive
    Motor_Resolution10,000PPR(2,500PPR×4-multiply)
    Motor_Output phaseA, @(A^), B, @(B^), Z, @(Z^)
    Motor_Max. response frequency300kHz
    Motor_Protection structureIP30
    Motor_ApprovalCE
    Motor phase2-Phase
    Driver_Environment_Ambient temperature0 to 50℃, storage: -20 to 70℃
    Driver_Environment_Ambient humidity35 to 85%RH, storage: 10 to 90%RH
    Driver_WeightApprox. 400g(approx. 290g)
    Motor_Environment_Ambient temperature0 to 50℃, storage: -20 to 70℃
    Motor_Environment_Ambient humidity20 to 85%RH, storage: 15 to 90%RH
    Motor_Weight? 2.23kg(? 2.07kg)
