AUTONICS

    AISA-86MA-B

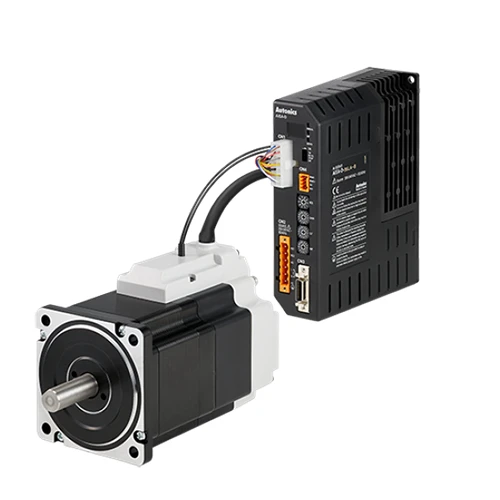

    2-Phase Closed-Loop Stepper Driver & Motor, AiSA-D-86MA-B Driver(2A/Phase) + AiA-M-86MA-B Motor(28.56Kgf.cm/2.8N.m), Built-in brake, 200~240VAC


    $2,094.30 $1,745.25
    1
    AISA-86MA-B
    AUTONICS
    Brand New
    12 Months
    Out Of Stock

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    Driver_Operation MethodBipolar constant current Drive
    Driver_Applied MotorFrame size 60mm 2-phase closed loop stepper motor
    Driver_Resolution500, 1000, 1600, 2000, 3200, 3600, 5000, 6400, 7200, 10000(SW2)
    Driver_Power supply200-240VAC~50/60Hz
    Driver_Max. Run Current2A/Phase
    Driver_OutputIn-Position, Alarm Out, Encoder signal (A, , B, , Z, )
    Driver_Environment_Ambient temperature0 to 50℃, storage: -10 to 60℃
    Driver_Environment_Ambient humidity35 to 85%RH, storage: 10 to 90%RH
    Driver_Protection structureIP20
    Driver_Approval
    Driver_WeightApprox. 1,020 g (approx. 780 g)
    Motor_Max. Holding Torque28.56kgf.cm
    Motor_Rotor Moment Of Inertia1,100g·cm²
    Motor_Rated Current2A/Phase
    Motor_Winding Resistance2.3?
    Inductance11.5 mH/Phase
    Motor_WeightApprox. 2.76 kg (approx. 2.50 kg)
    Motor_Basic Step Angle [FULL/HALF]1.8º/0.9º
    Motor phase2-Phase
    Motor_Operation MethodBipolar constant current Drive
    Motor_Environment_Ambient temperature0 to 40?, storage: -20 to 70℃
    Motor_Environment_Ambient humidity20 to 85%RH, storage: 15 to 90%RH
    Motor_Approval
    Motor_Protection structureIP30
    Motor_Resolution10,000PPR(2,500PPR×4-multiply)
    Motor_Output phaseA, , B, , Z,
    Motor_Max. response frequency300kHz
