APAN3124

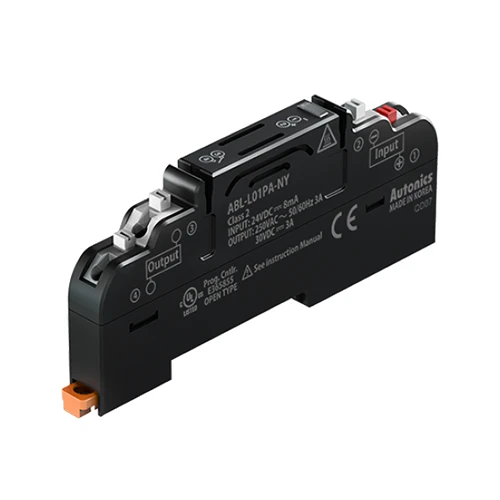

Relay, 1 Form A, 24VDC, Matsushita(Panasonic), for ABS series, [Old p/n PA1A-24V]
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Rated voltage | 24VDC ⎓ ±10% |
|---|---|
| Rated load voltage & current | 250VAC~ 50/60Hz 3A, 30VDC ⎓ 3A |
| Current consumption | ? 8mA |
| Applied relay | APAN3124 [MATSUSHITA(Panasonic)] |
| Number of relay points | 1-point |
| Terminal type | Screwless |
| Terminal pitch | 9.0mm(arranging over 2 units) |
| Indicator | Operation indicator: Blue LED |
| Applicable cable_Solid wire | Ø0.6 to Ø1.25mm(60℃ only) |
| Applicable cable_Stranded wire | AWG22-16(0.3~1.25mm²)(60℃ only) |
| Insulation resistance | ≥1,000MΩ(at 500VDC megger) |
| Dielectric strength_Between coil-contacts | 3,000VAC 50/60Hz for 1 minute |
| Dielectric strength_Between same contacts | 1,000VAC 50/60Hz for 1 minute |
| Environment_Ambient temperature | -15 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Terminal block: Polyamide 66, Conducting plate: Brass, CASE&BASE: Poly phenylene sulfide |
| Protection structure | IP20(IEC standard) |
| Approval |  |
| Weight | Approx. 138g(approx. 21g) |
