In Stock (32 Available)

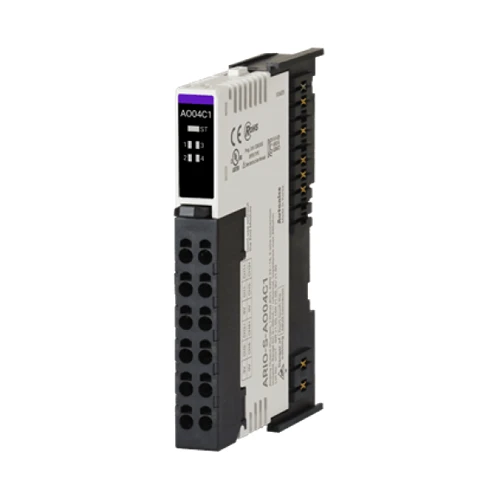

    Slim Remote I/O, I/O Module, 4ch Analog Current Output, Range:4 to 20mA

    $455.71 $379.76 / each
    Add To Cart Buy Now

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.

    I/O methodCurrent output
    I/O range4 to 20mA
    Accuracy_Room temp.±0.3% F.S.
    Accuracy_Out of room temp.±0.6% F.S.
    Load resistanceMin. 5kΩ / Max. 350Ω
    Status indicator ON conditionsAlways ON
    Power consumption_ABUS5VDCEQ, max. 100mA (max. 0.5W)
    Power consumpti_I/O24VDCEQ, max. 60mA (max. 1.44W)
    Mounting typeDIN rail mounting
    Insulation resistance100MΩ (at 500VDCEQ megger)
    I/O to inner circuit: photocoupler insulated, between channels: non-insulated
    Environment_Ambient temperature-10 to 55℃, storage: -25 to 70℃
    Environment_Ambient humidity35 to 85% RH, storage: 35 to 85% RH
    Protection structureIP20(IEC standard)
    MaterialTerminal: polyamide6, Body: modified polyphenylene oxide, Base: polyamide6, poly oxy methylene
    WeightApprox. 75g(approx. 108g)

    The exact weight of the cargo you've scheduled will be measured at the QUANTUM office. We will send you an email with a payment link if the weight difference is larger than the shipment amount. The payment link email will include the new weight and the difference amount that must be paid. If you have any queries concerning this procedure, please contact our customer support team at +1-905-625-3500.
