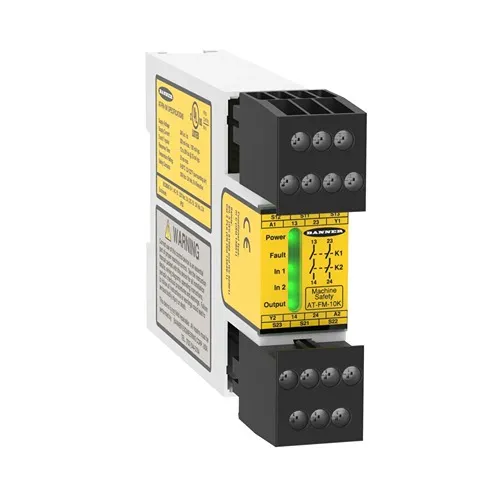

    AT-FM-10K

    Safety Relay Module For Two-Hand Control Buttons; Supply Voltage: 24 V Ac/Dc; Safety Input: Two Buttons With Complementary Pnp Or Relay Outputs; Safety Output: 2 No, 6 A;Auxoutput: None; Terminal Block: Removable; Width: 22.5 Mm; Self-Checking Circuitry;

    RELAYS

    ||

    BANNER-ENGINEERING

    5.00 10

    10 Review(s)
    $443.52 $369.60 / each
    1
    AT-FM-10K
    BANNER-ENGINEERING
    FACTORY SEALED
    AT-FM-10K.pdf
    Add To Cart Buy Now

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.

    Power
    AC/DC Universal
    IP Rating
    IP20
    Device Type
    Safety Relay
    In-Series Diagnostics
    No
    Safety Module Type
    Two-Hand Control Module
    LCD Display
    No
    Expandable
    No
    Dimension (H x W x D in mm)
    84 x 22.5 x 118
    Relative Humidity
    90% @ 50° C
    Max Operating Temperature ( °C)
    50
    Input Operation
    Simultaneous <= 500 ms (500 ms typical)
    Number of Safe Inputs
    1
    Input Configuration
    2 x complementary (contact or PNP)
    Safety Input - Dual Channel (Dry Contact)
    25 mA @ 24 V dc (1 NO / 1 NC per channel)
    Safety Input - Dual Channel (Solid-State)
    25 mA @ 24 V dc (1 complementary PNP pair per channel)
    Independently Controlled Safe Outputs
    1
    Output Configuration
    2 NO
    Non Safe Output Rating
    N/A
    Safe Output Rating
    Relay - 6 A
    Splittable Safe Output
    No
    Mechanical Life (Operations in Millions)
    20
    Power Consumption
    3 W / 3 VA
    Response Time (ms)
    35 (max.)
    Supply Voltage
    24 V ac/dc +/- 15%
    Terminal Type
    Screw
    Removable Terminals
    Yes
    Vibration
    10-55 Hz at 0.35 mm
    Electrical Life (Cycles @ VA)
    1,000,000 @ 250 VA
    PL Rating
    e
    Safety Category Rating
    4
    SIL Rating
    3
    SISTEMA
    PFHd = 1.5 x 10-9
    THC Rating
    IIIC
    E-Stops/Rope Pulls
    No
    Safety Mat
    No
    Motor Speed
    No
    Two-Hand Controls
    Yes
    Muting
    No
    Gate Switch (NC/NC) Input
    No
    Gate Switch (NC/NO) Input
    No
    Gate Switch (OSSD) Input
    No
    Light Curtains/Scanner with EDM Input
    No
    Light Curtains/Scanner without EDM Input
    No
