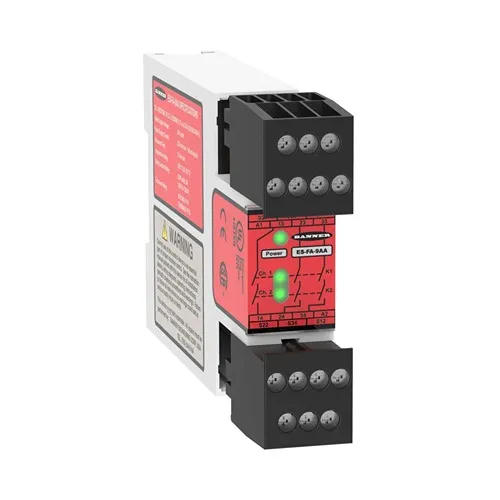

    ES-FA-9AA

    Safety Relay Module For E-Stop/Rope Pull/Interlock; Supply Voltage: 24 V Ac/Dc; Safety Input: 1 Dual/Single Channel; Safety Output: 3 No, 6 A; Aux Output: None; Terminal Block: Removable; Width: 22.5 Mm; Self-Checking Circuitry, Auto/Manual Reset;

    RELAYS

    ||

    BANNER-ENGINEERING

    5.00 10

    10 Review(s)
    $258.05 $215.04 / each
    1
    ES-FA-9AA
    BANNER-ENGINEERING
    FACTORY SEALED
    ES-FA-9AA.pdf
    Add To Cart Buy Now

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.

    Power
    AC/DC Universal
    IP Rating
    IP20
    Device Type
    Safety Relay
    In-Series Diagnostics
    No
    Safety Module Type
    Emergency Stop Module
    LCD Display
    No
    Expandable
    No
    Dimension (H x W x D in mm)
    84 x 22.5 x 118
    Relative Humidity
    90% @ 50° C
    Max Operating Temperature ( °C)
    50
    Input Operation
    Simultaneous or Concurrent
    Number of Safe Inputs
    1
    Input Configuration
    2 NC or 1 NC
    Safety Input - Dual Channel (Dry Contact)
    10-20 mA @ 12 V dc
    Safety Input - Reset
    20 mA @ 12 V dc (dry contact only)
    Independently Controlled Safe Outputs
    1
    Output Configuration
    3 NO
    Non Safe Output Rating
    N/A
    Safe Output Rating
    Relay - 6 A
    Splittable Safe Output
    No
    Mechanical Life (Operations in Millions)
    20
    Power Consumption
    2 W / 2 VA
    Recovery Time (ms)
    250
    Response Time (ms)
    25 (typical)
    Supply Voltage
    24 V ac/dc +/- 10%
    Terminal Type
    Screw
    Removable Terminals
    Yes
    Vibration
    10-55 Hz at 0.35 mm
    Electrical Life (Cycles @ VA)
    1,000,000 @ 450 VA
    PL Rating
    e
    Safety Category Rating
    4
    SIL Rating
    3
    SISTEMA
    PFHd = 5.1 x 10-10
    Safety Input - Single Channel
    40-100 mA @ 24 V ac/dc +/- 10%
    Input Resistance
    100 Ω max. per channel
    E-Stops/Rope Pulls
    Yes
    Safety Mat
    No
    Motor Speed
    No
    Muting
    No
    Gate Switch (NC/NC) Input
    Yes
    Gate Switch (NC/NO) Input
    No
    Gate Switch (OSSD) Input
    No
    Light Curtains/Scanner with EDM Input
    No
    Light Curtains/Scanner without EDM Input
    No
    Recovery Time
    250
