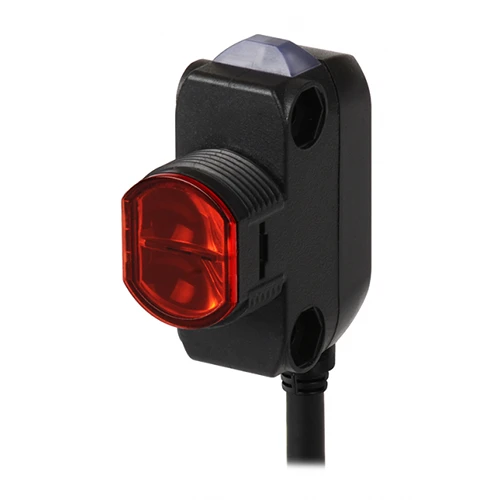

BH4M-PDT
Sensor, Photo, Retroreflective(Built-in Polarized Filter), 4m Sensing distance, Light & Dark On, NPN/PNP Open Collector Simultaneous 2 Output, 12-24 VDC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Sensing type | Retroreflective type(built-in polarizing filter) |
|---|---|
| Sensing distance | 4m(MS-2A) |
| Sensing target | Opaque material of min. Ø75mm |
| Light source | Red LED(660nm) |
| Response time | Max. 1ms |
| Power supply | 12-24VDC  ±10%(ripple P-P: max. 10%) |
| Current consumption | Max. 30mA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by switch) |
| Control output | NPN, PNP open collector simultaneous output |
| Connection type | Cable type(Ø4, 2.1m) |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -25 to 55℃, storage: -40 to 70℃ |
| Protection structure | IP67 |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Case: Polycarbonates, LED indicator: Polycarbonates, Sensing part: Polymethyl methacrylate acrylic |
| Accessories_Individual | Reflector(MS-2A) |
| Accessories_Common | Adjustment screwdriver, fixing bracket, M18 fixing nut, fixing cap, M3 bolt, M3 nut |
| Weight | Approx. 140g(Approx. 60g) |
The exact weight of the cargo you've scheduled will be measured at the QUANTUM FIRST AUTOMATION office. We will send you an email with a payment link if the weight difference is larger than the shipment amount. The payment link email will include the new weight and the difference amount that must be paid. If you have any queries concerning this procedure, please contact our customer support team at +1-905-625-3500.
