BMEXBP0602

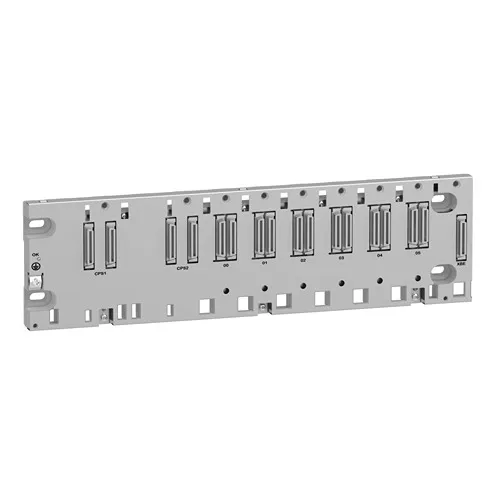

Backplane Rack, Modicon X80, 6 Slots, Redundant Ethernet Backplane
/ each
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Range of product | Modicon X80 |
|---|---|
| accessory / separate part type | Rack |
| Number of slots | 6 bus X + Ethernet |
|---|---|
| Product compatibility | Specific application module BMX processor I/O module BME processor BMXCPS4002 |
| Power consumption in W | 191 mW 3.3 V DC 3.6 W 24 V DC |
| Electrical connection | 1 connector (XBE) expansion module |
| Fixing mode | By 4 screws 0.17…0.25 in (4.32…6.35 mm) panel By 4 M6 screws plate By clips 35 mm symmetrical DIN rail |
| Current consumption | 152 mA 24 V DC 58 mA 3.3 V DC |
| MTBF reliability | 1353797 H |
| net weight | 2.25 lb(US) (1.02 kg) |
| IP degree of protection | IP20 |
|---|---|
| Ambient air temperature for operation | 32…140 °F (0…60 °C) |
| Relative humidity | 5…95 % without condensation |
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.64 in (6.700 cm) |
| Package 1 Width | 5.98 in (15.200 cm) |
| Package 1 Length | 17.95 in (45.600 cm) |
| Package 1 Weight | 2.22 lb(US) (1.007 kg) |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 9 |
| Package 2 Height | 11.81 in (30.000 cm) |
| Package 2 Width | 15.75 in (40.000 cm) |
| Package 2 Length | 23.62 in (60.000 cm) |
| Package 2 Weight | 22.07 lb(US) (10.010 kg) |
