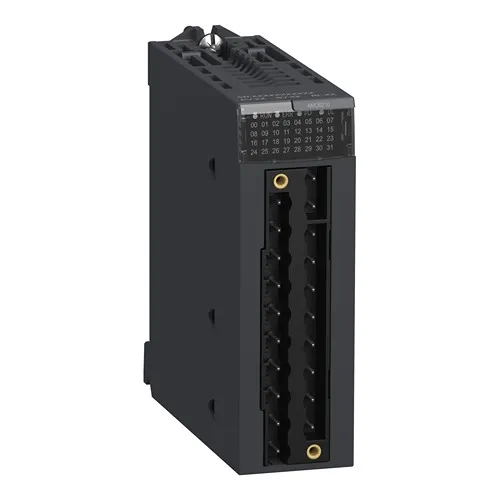

BMXAMO0210
Analog Isolated High Level Output Module, Modicon X80, 2 Outputs, 0 To 20Ma, 4 To 20Ma, 10V Positive Or Negative
/ each
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Range of product | Modicon X80 |
|---|---|
| product or component type | Analog output module |
| Electrical connection | 20 ways 1 connector |
| Isolation between channels | Isolated |
| Measurement error | 0.1 % of full scale 25 °C |
|---|---|
| Temperature drift | 30 ppm/°C |
| Recalibration | Factory calibrated |
| Minimum crosstalk attenuation | 90 dB |
| Common mode rejection | 100 dB |
| Isolation voltage | 1400 V DC between channels and ground 1400 V DC between channels and bus 750 V DC between channels |
| Detection type | Open circuit 0...20 mA Open circuit 4...20 mA Short circuit +/- 10 V |
| Load impedance ohmic | >= 1000 Ohm +/- 10 V |
| Output level | High level |
| analogue output number | 2 |
| Analogue output type | Current 0...20 mA Current 4...20 mA Voltage +/- 10 V |
| Analogue output resolution | 15 bits + sign |
| Supply | Internal power supply via rack |
| Conversion time | |
| Maximum conversion value | +/- 11.25 V +/- 10 V 0...24 mA 0...20 mA 0...24 mA 4...20 mA |
| Fallback mode | Predefined Configurable |
| MTBF reliability | 1300000 H |
| Operating altitude | 0...2000 m 2000...5000 m with derating factor |
| Status LED | 1 LED (green) RUN 1 LED per channel (green) channel diagnostic 1 LED (red) ERR 1 LED (red) I/O |
| net weight | 0.32 lb(US) (0.144 kg) |
| Power consumption in W | 2.1 W 24 V DC typical 2.8 W 24 V DC maximum 0.35 W 3.3 V DC typical 0.48 W 3.3 V DC maximum |
| Current consumption | 150 mA 3.3 V DC 110 mA 24 V DC |
| Vibration resistance | 3 gn |
|---|---|
| Shock resistance | 30 gn |
| ambient air temperature for storage | -40…185 °F (-40…85 °C) |
| Ambient air temperature for operation | 32…140 °F (0…60 °C) |
| Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
| Product certifications | CE RCM CSA EAC Merchant Navy UL |
| Standards | EN/IEC 61010-2-201 EN/IEC 61131-2 UL 61010-2-201 CSA C22.2 No 61010-2-201 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.17 in (5.500 cm) |
| Package 1 Width | 4.33 in (11.000 cm) |
| Package 1 Length | 4.53 in (11.500 cm) |
| Package 1 Weight | 6.10 oz (173.000 g) |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 5.91 in (15.000 cm) |
| Package 2 Width | 11.81 in (30.000 cm) |
| Package 2 Length | 15.75 in (40.000 cm) |
| Package 2 Weight | 6.40 lb(US) (2.901 kg) |
